Trimos Portable CNC Measuring Machine – C Line
The world’s first truly portable CNC Coordinate Measuring Machines designed for the workshop
Trimos new C-Line is the world’s first truly portable CNC Coordinate Measuring Machines designed for the workshop. This product line is part of the new TRIMOS 3D product group.

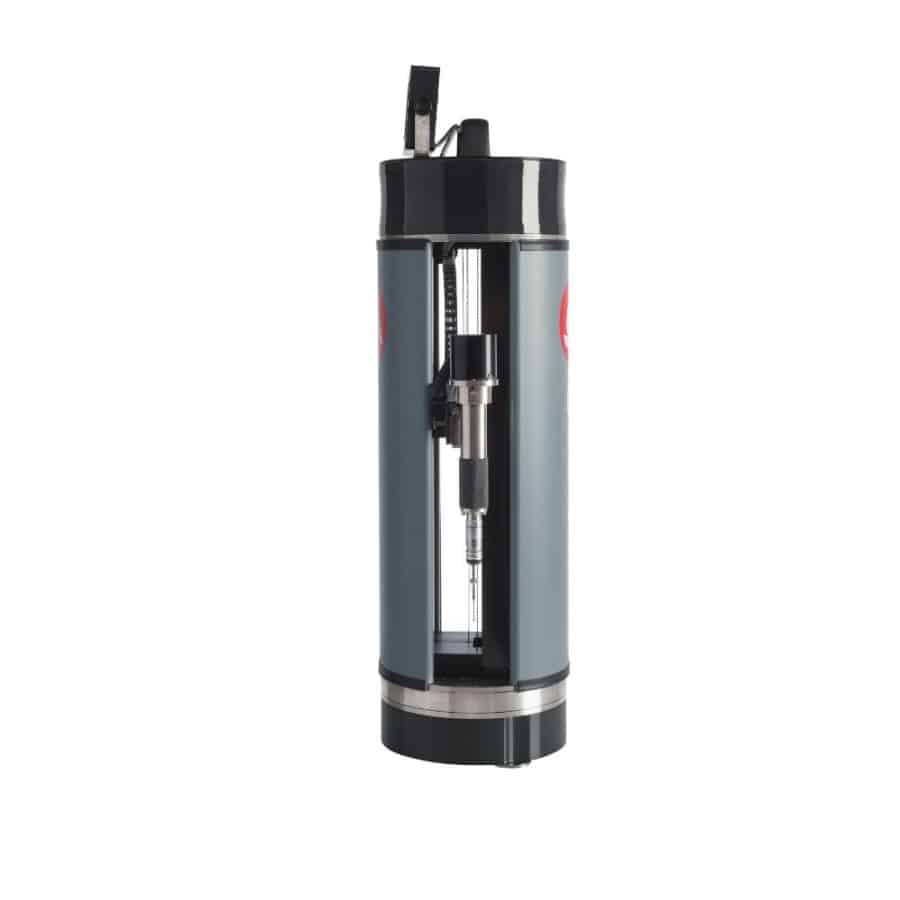

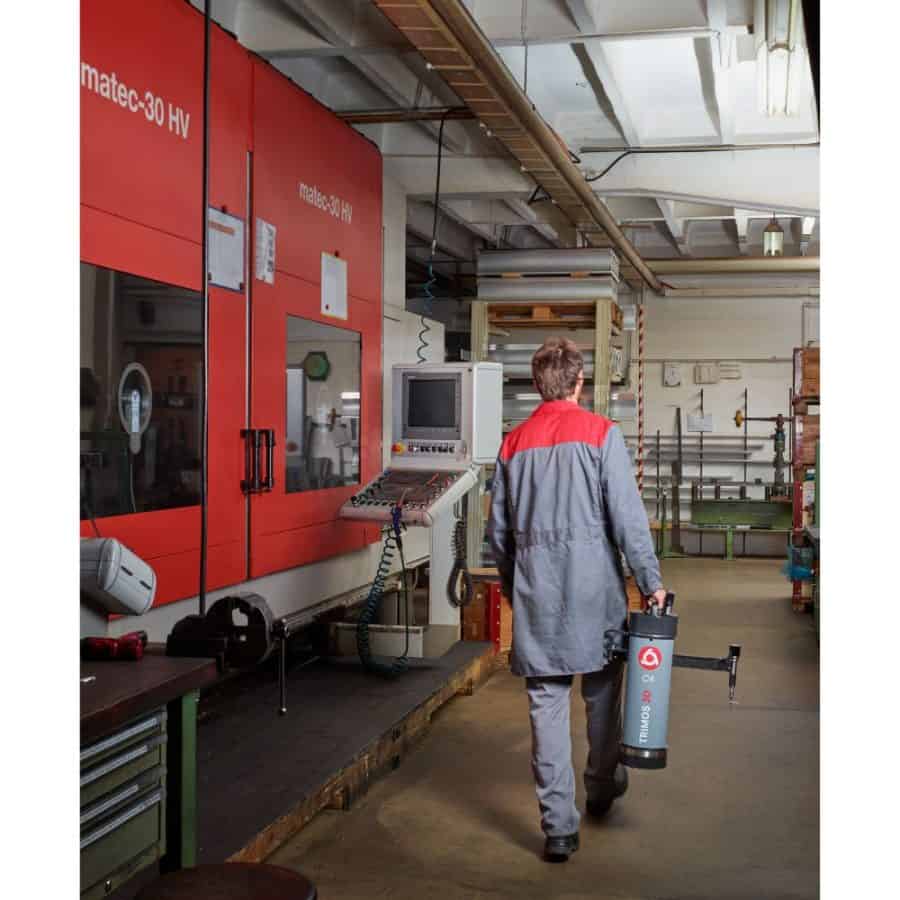

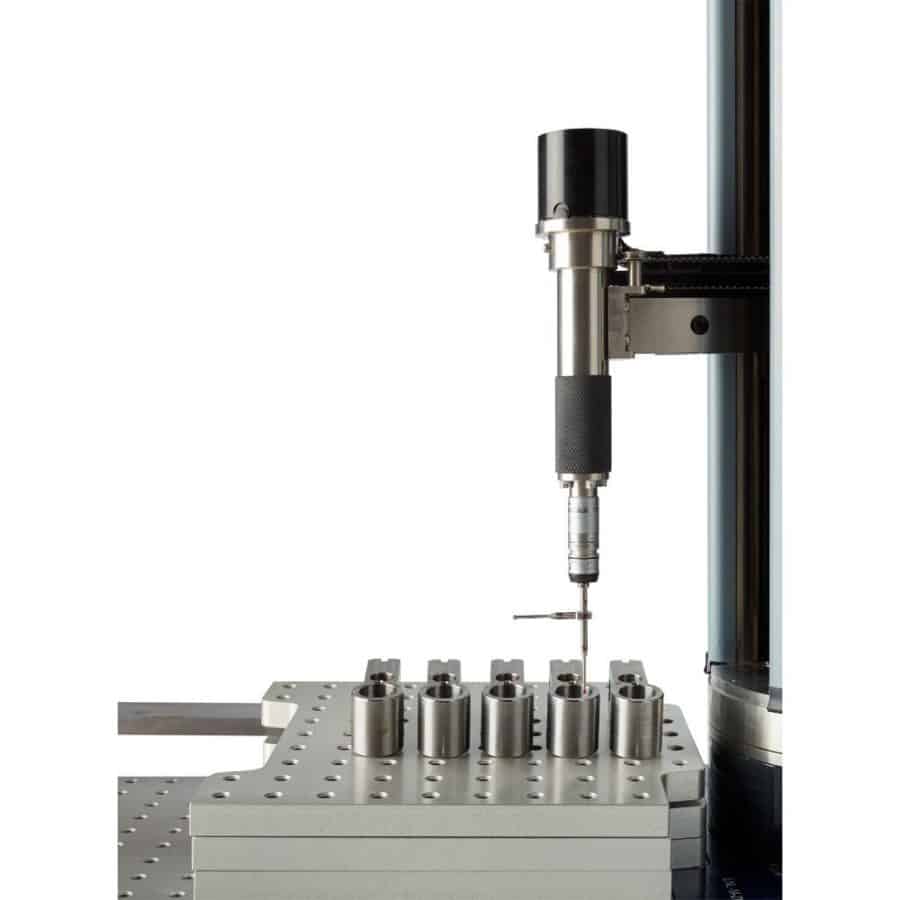

Portable: At only 13,5 kg, the CNC C-Line goes with you wherever you need it. No longer are you required to take the part to the CMM, the C-Line can be deployed directly in the manufacturing process.
Easy-to-Use: The C-Line is easy to operate using a portable PC. The concept of this product has been thought for optimal user experience and ease-of-use.
Software: The C-Line is delivered standard with the ControlC software, which allows you to perform many type of measurements: distance, circle, plane, line, point… To take full advantage of the performance of the C4, we advise the optional Aberlink software, 3D software offering the advantage of ease of use. Other measurement software are compatible: PolyWorks, CMM Manager, Verisurf etc.

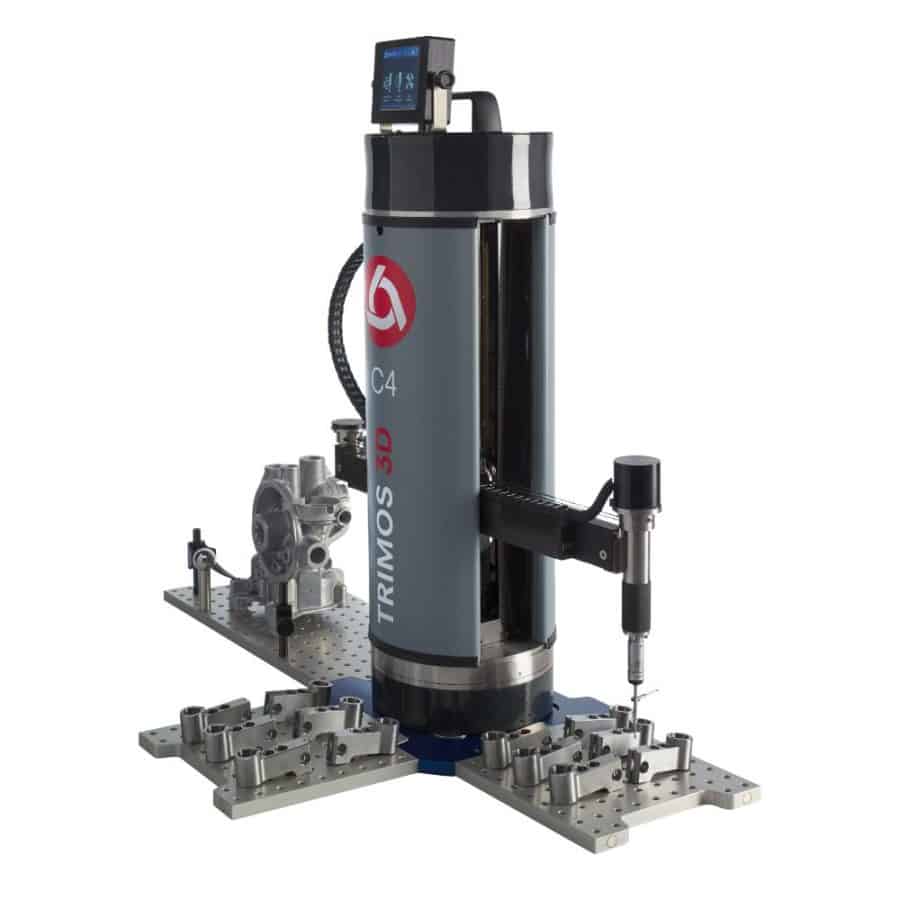

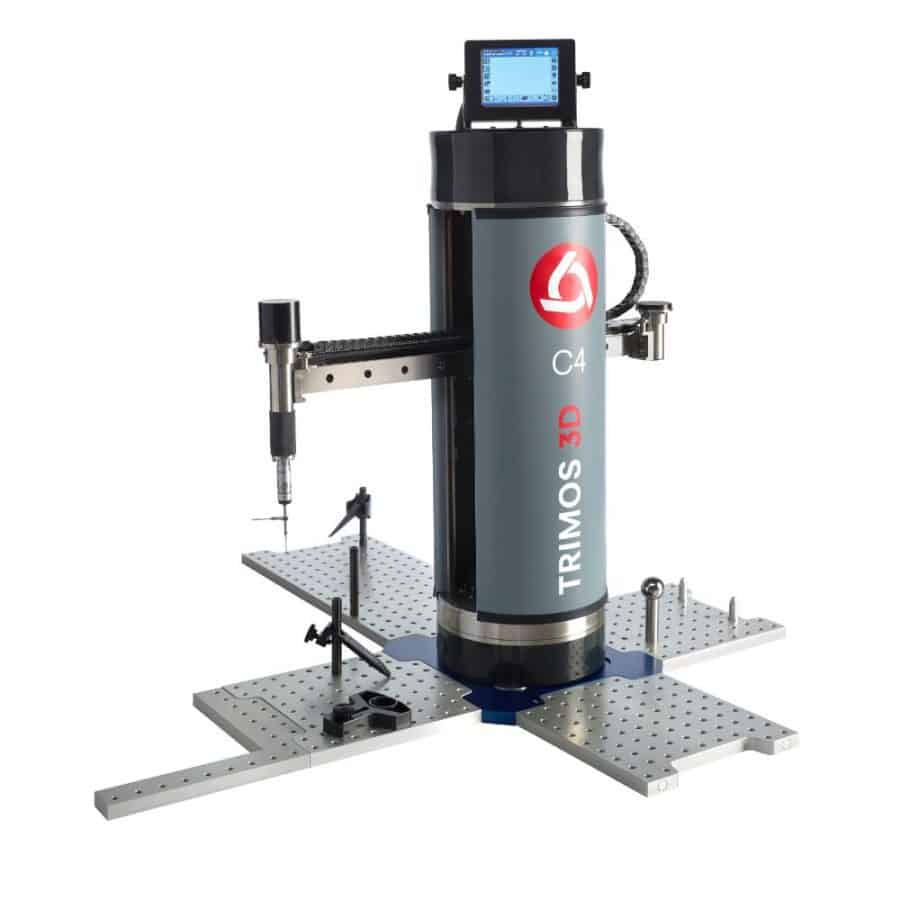

Models: The C3, entry model of our new portable CMMs, has 3 axes motorized (X, C, Z). It allows basic 3D measurements. This model is not yet marketed. The C4 is the premium model of our new portable CNC CMMs. It has 4 axes motorized. (X, C, Z, P). The C4 allows high performance measurements in 3D.
Technical Specification
| C-Line | ||
|---|---|---|
| Working volume | mm | X and Y Ø 720, Z 250 |
| LDIA, MPE | µm | 8 |
| Fixturing accuracy requirement | mm | 5 |
| Machine speed | mm/s | User controlled to 150 |
| Machine air requirement | None required | |
| Construction | Stainless steel for all structural components | |
| Machine power requirements | 100-240 V AC±10%, 50-60Hz | |
| Autonomy | h | Normal: 4 /peak: 3 |
| Power consumption | W | Normal: 10 / Peak 15 |
| Manual motion control | User controlled by hand movement of probe | |
| Controller | Onboard PCB provides motion control, error mapping, | |
| I++ interface and ControlC metrology software | ||
| Temperature compensation | Onboard monitoring and compensation | |
| Probe Type | Renishaw TP20 probe | |
| Machine weight | kg (lbs) | 13.5 (30) |
| Machine dimensions (W x D x H) | mm | 420 x 172 x 620 |
| Operational Temperature | °C | +10 ÷ +40 |
| Storage Temperature | °C | +10 ÷ +40 |
| Relative Humidity (operation and storage) | % | HR 5 ÷ 75% (non-condensing) |
