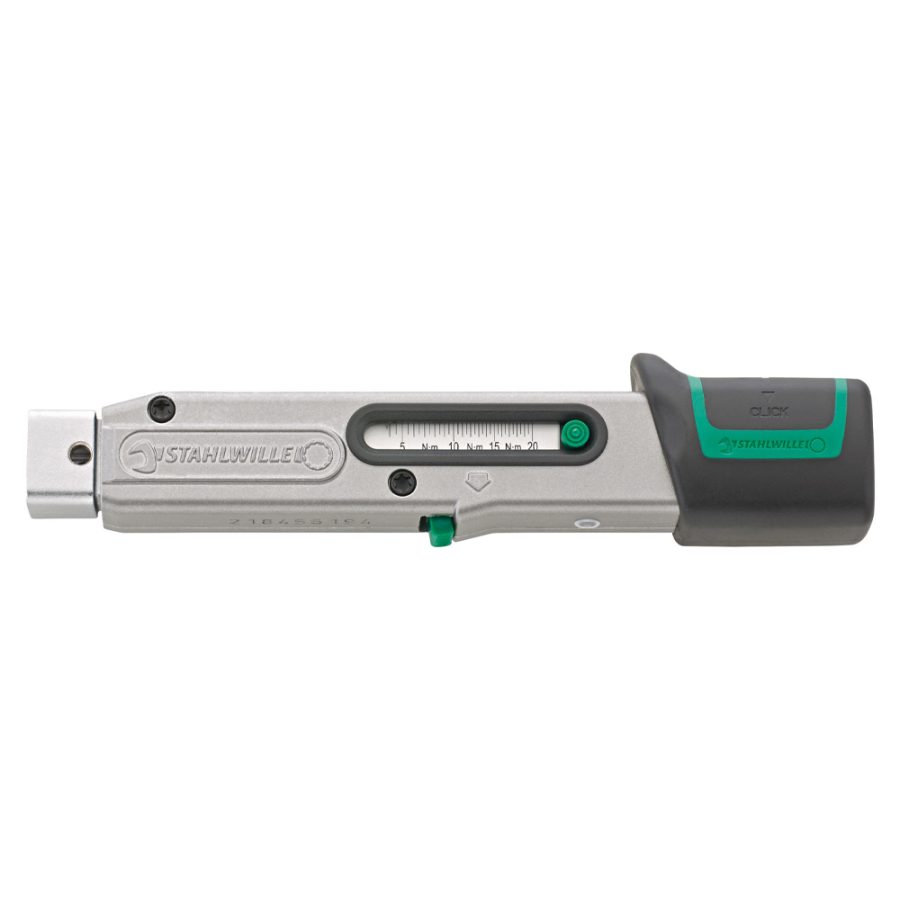

Torque wrench service MANOSKOP®(in·lb) 730a Quick
- clicking type with dual stop signal
- no reset to “0” required
- the measuring element is only under load when a force is applied
- with holder for interchangeable insert tools
- non-slip adjuster with thumb recess for quick torque adjustment
- counter-clockwise tightening by turning the insert tool over
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
| Product no. | Size | Model | Tool holder size [internal square] | Measuring range in-lb | Scale division in-lb | Length mm (L) | Width mm (b) | Height mm (h) | LF | SF | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50584001 | a/2-1 | 730a Quick | 9 x 12 mm | 17,5-87,5 in·lb | 2,5 in·lb | 179 mm | 27,5 mm | 23,6 mm | 157,2 mm | 17,5 mm | 315 g | |
| 50584002 | a/2 | 730a Quick | 9 x 12 mm | 30-175 in·lb | 5 in·lb | 179 mm | 27,5 mm | 23,6 mm | 157,2 mm | 17,5 mm | 315 g |
Discover now
|
| 50584004 | a/4 | 730a Quick | 9 x 12 mm | 70-350 in·lb | 10 in·lb | 223 mm | 27,5 mm | 23,6 mm | 200,8 mm | 17,5 mm | 395 g |
Discover now
|
Technologies and features
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
QuickSelect
Lightning-fast target value setting: Unlock the adjustment knob, set the value, and lock the knob again.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
