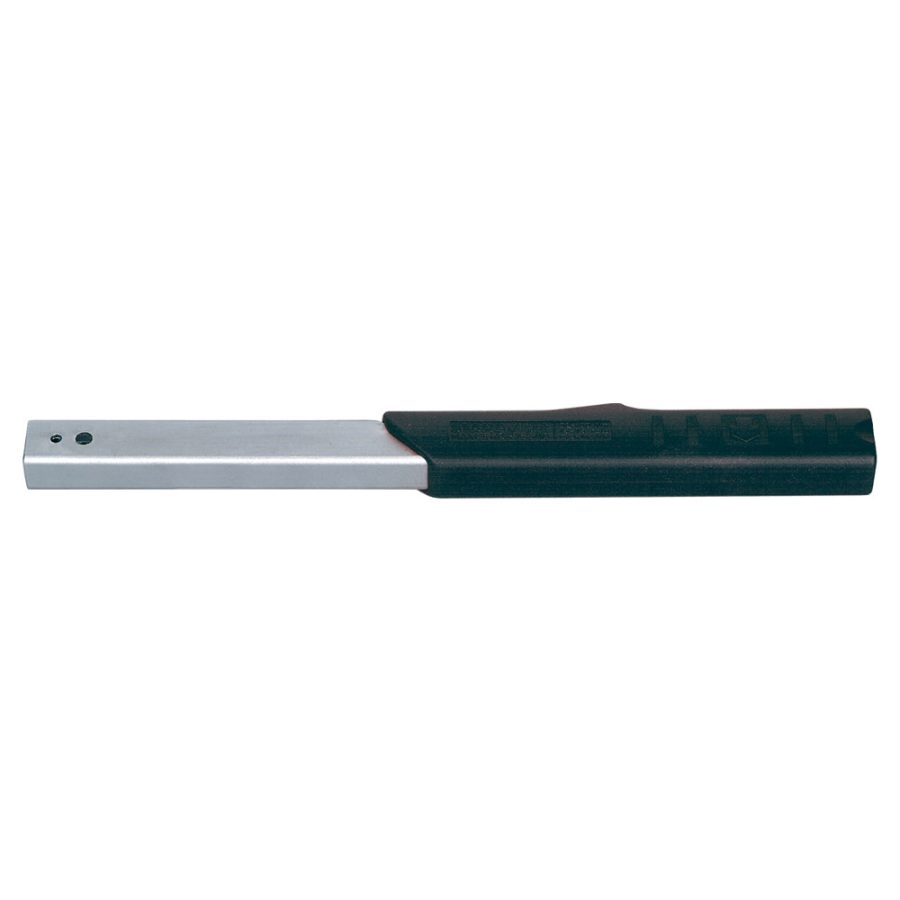

Torque wrench series MANOSKOP® with holder for insert tools 755

clicking type with dual stop signal
for work on assembly lines or for repetitive production tasks.
no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
with holder for interchangeable insert tools
particularly slim design
handle and shaft made of square steel pipe
Further loading after clicking or loads in the opposite direction of operation (up to the max. measurement range of the torque wrench) do not affect the trigger mechanism, which protects it from damage
counter-clockwise tightening by turning the insert tool over
can be supplied pre-set at defined torque value and with certification (additional charge applies)
accuracy ± 4%

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	MA N·m	Nominal value N·m	Length mm (L)	Width mm (b)	Height mm (h)	LF	SF	Weight (g)
50010004	755	4	9 x 12 mm	4-40 N·m	3-30 ft·lb	4 N·m	40 N·m	201 mm	22 mm	18 mm	172 mm	17,5 mm	500 g
50010010	755	10	9 x 12 mm	20-100 N·m	15-74 ft·lb	20 N·m	100 N·m	318 mm	28 mm	24 mm	289 mm	17,5 mm	635 g
50010020	755	20	14 x 18 mm	40-200 N·m	30-147 ft·lb	40 N·m	200 N·m	457 mm	28 mm	24 mm	435 mm	25 mm	1045 g
50010030	755	30	14 x 18 mm	60-300 N·m	40-220 ft·lb	60 N·m	300 N·m	609 mm	28 mm	24 mm	587 mm	25 mm	1210 g
