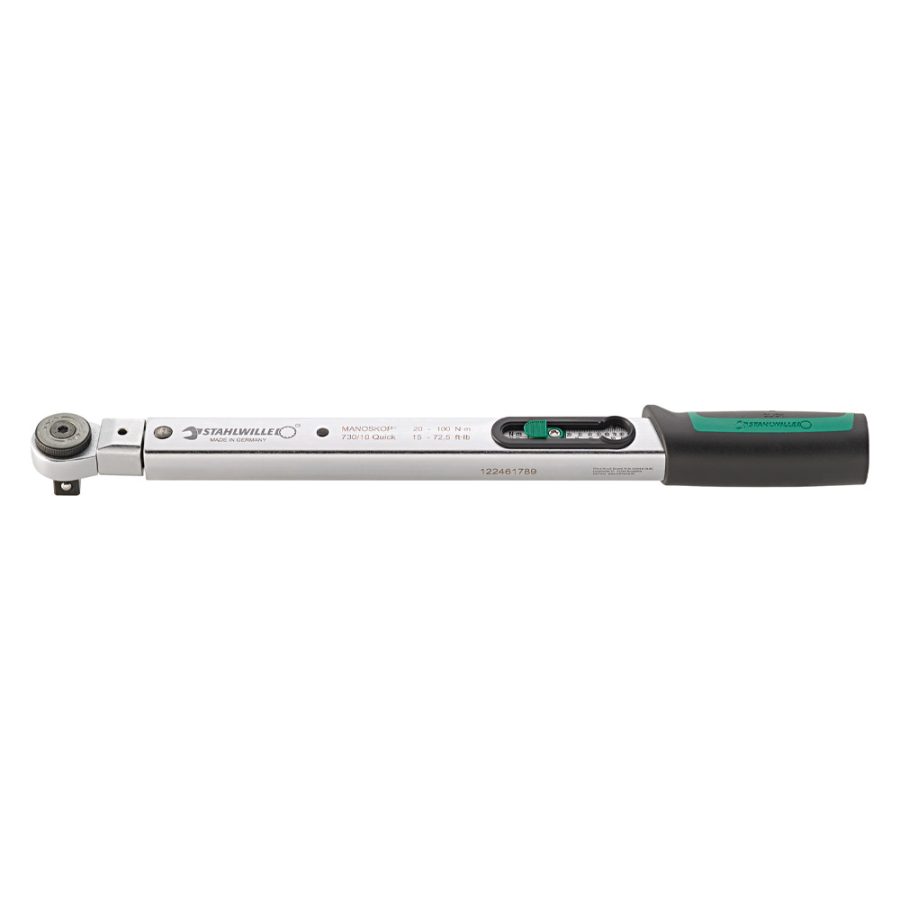

Torque wrench MANOSKOP® 730R Quick

clicking type with dual stop signal
no reset to “0′ required, as the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
Quick adjustment thanks to easy-to-operate locking lever in handle
non-slip adjuster with thumb recess for quick torque adjustment
double scale N·m/ft·lb or N·m/in·lb
also available on request as a N·m only version without dual scale
counter-clockwise tightening by turning the insert tools over
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 4%

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	Scale division N·m	External square drive (inch)	Length mm (L)	b1	b2	Height mm (h)	LF	SF	Weight (g)
96501054	730R Quick	2-1	9 x 12 mm	2-10 N·m	– ft·lb	0,5 N·m	1/4	250 mm	60 mm	22 mm	55 mm	157,2 mm	17,5 mm	480 g
96504002	730R Quick	2	9 x 12 mm	4-20 N·m	– ft·lb	0,5 N·m	3/8	255 mm	55 mm	33 mm	55 mm	157,2 mm	17,5 mm	455 g
96504004	730R Quick	4	9 x 12 mm	8-40 N·m	– ft·lb	1 N·m	3/8	285 mm	55 mm	33 mm	55 mm	200,8 mm	17,5 mm	642 g
96504005	730R Quick	5	9 x 12 mm	6-50 N·m	5-36 ft·lb	2 N·m	3/8	380 mm	50 mm	33 mm	50 mm	288 mm	17,5 mm	994 g
96504010	730R Quick	10	9 x 12 mm	20-100 N·m	15-72,5 ft·lb	2,5 N·m	1/2	430 mm	55 mm	33 mm	55 mm	343 mm	17,5 mm	1190 g
96504012	730R Quick	12	14 x 18 mm	25-130 N·m	20-95 ft·lb	2,5 N·m	1/2	475 mm	52 mm	43 mm	52 mm	390 mm	25 mm	1488 g
96504020	730R Quick	20	14 x 18 mm	40-200 N·m	30-145 ft·lb	5 N·m	1/2	530 mm	55 mm	43 mm	55 mm	435 mm	25 mm	1626 g
96504030	730R Quick	30	14 x 18 mm	60-300 N·m	50-220 ft·lb	10 N·m	1/2	590 mm	50 mm	43 mm	50 mm	500 mm	25 mm	1400 g
96504040	730R Quick	40	14 x 18 mm	80-400 N·m	60-300 ft·lb	10 N·m	3/4	675 mm	72 mm	50 mm	63 mm	570 mm	25 mm	2694 g

Technologies and features

Low-wear bending beam system

Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
