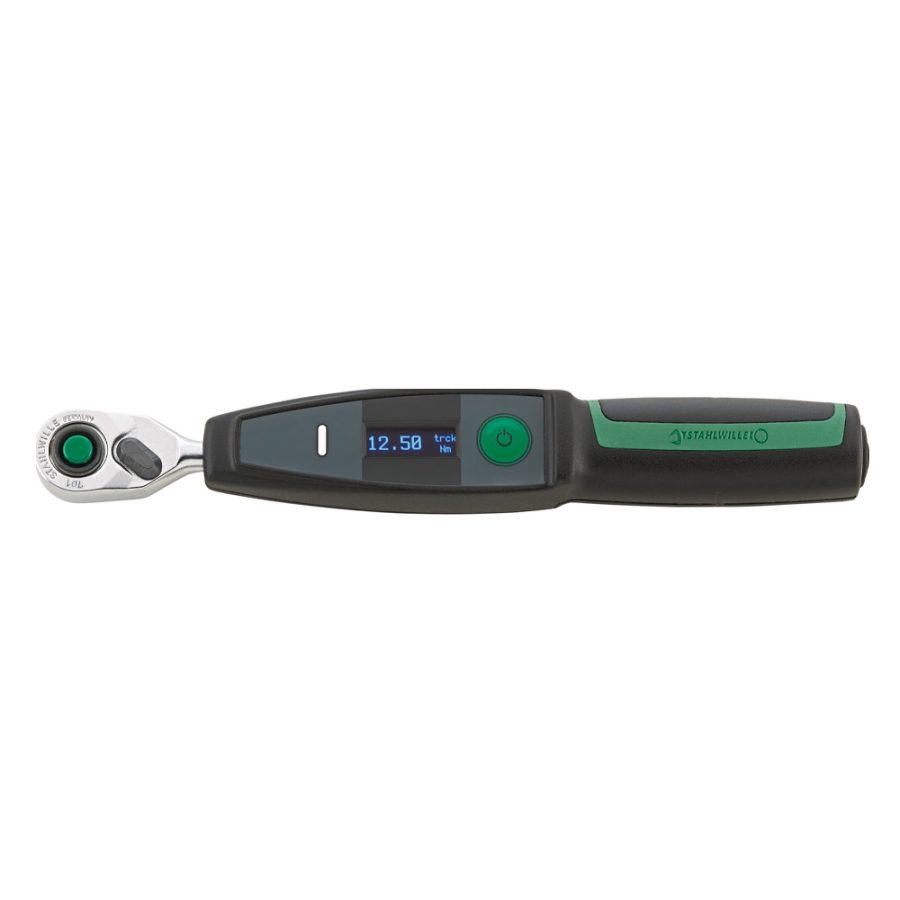

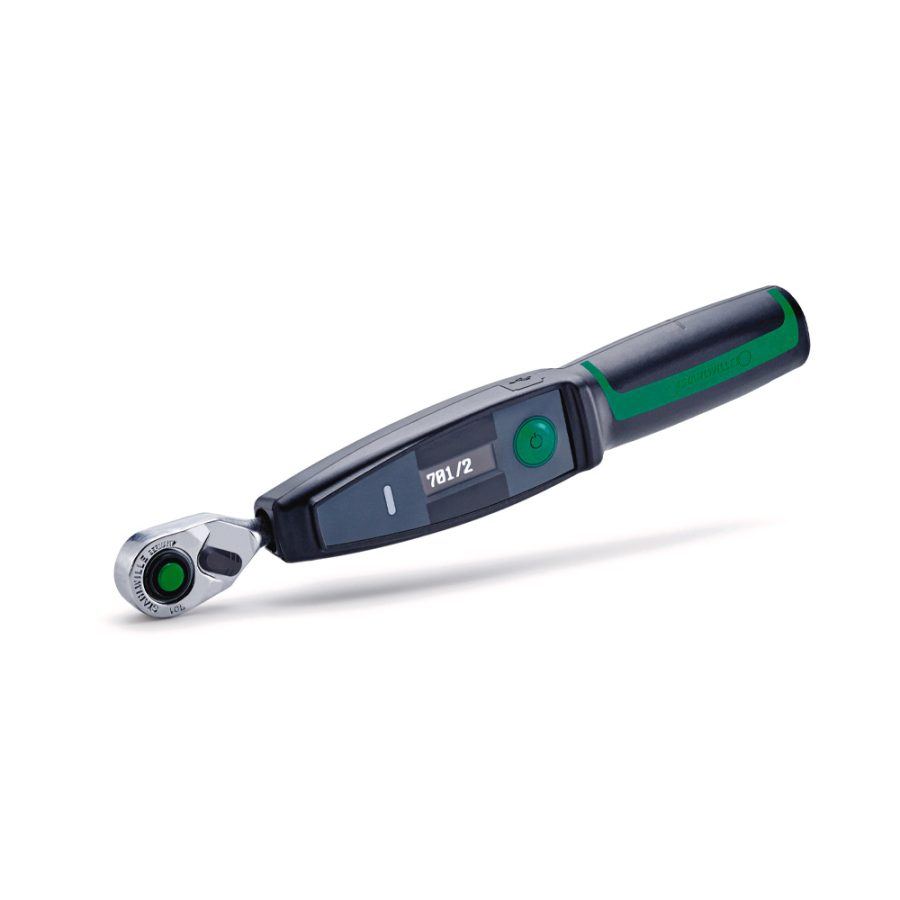

Electronic torque wrench SENSOTORK® with fixed fine-tooth ratchet 701/2
- Electronic torque wrench for a small measuring range of 1-20 N·m.
- Displaying with acoustic, haptic and visual evaluation of the torque achieved.

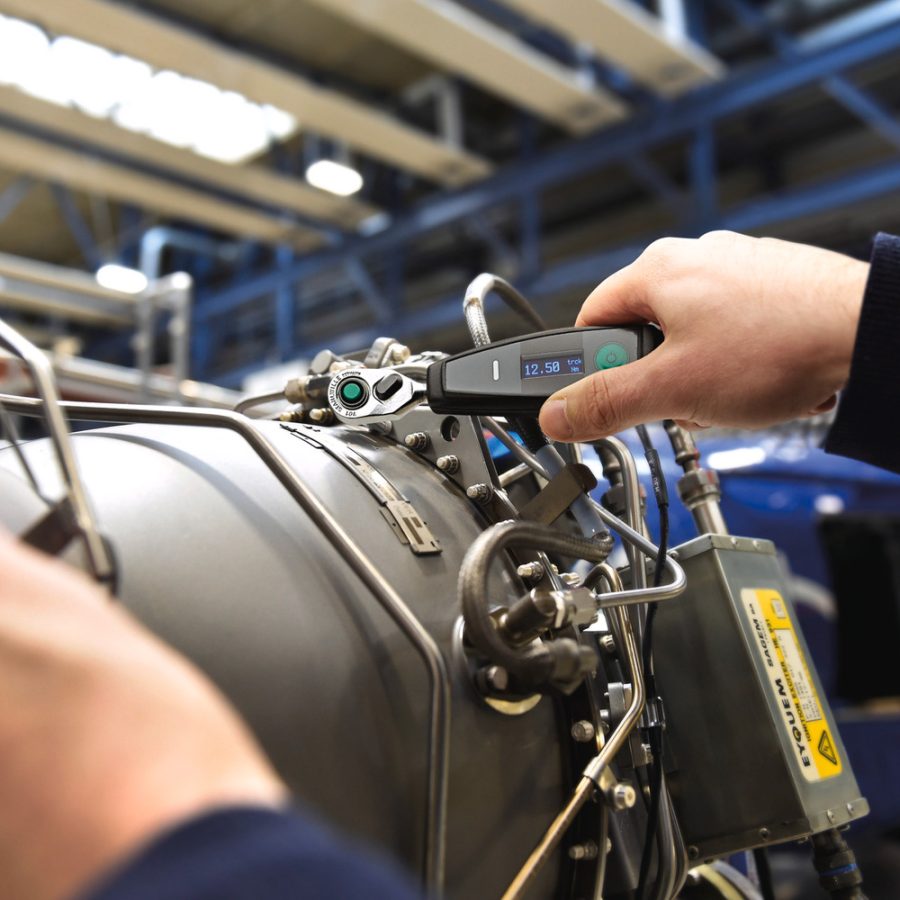

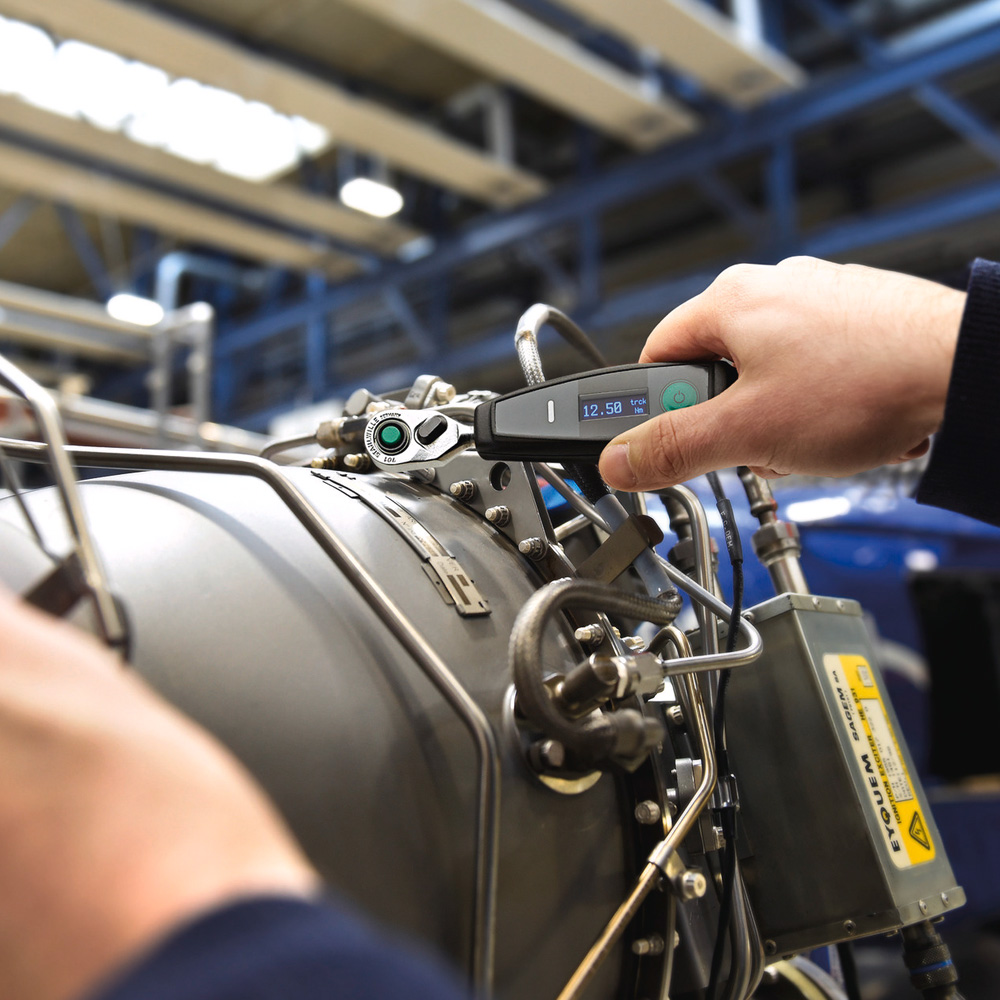

- The compact design with built-in fine-tooth ratchet makes precise screw tightening possible, even in confined spaces.
- Simple documentation of the measured values on the PC via the USB interface.
- The QuickRelease safety lock protects against unintentional loosening and allows tools to be changed quickly.

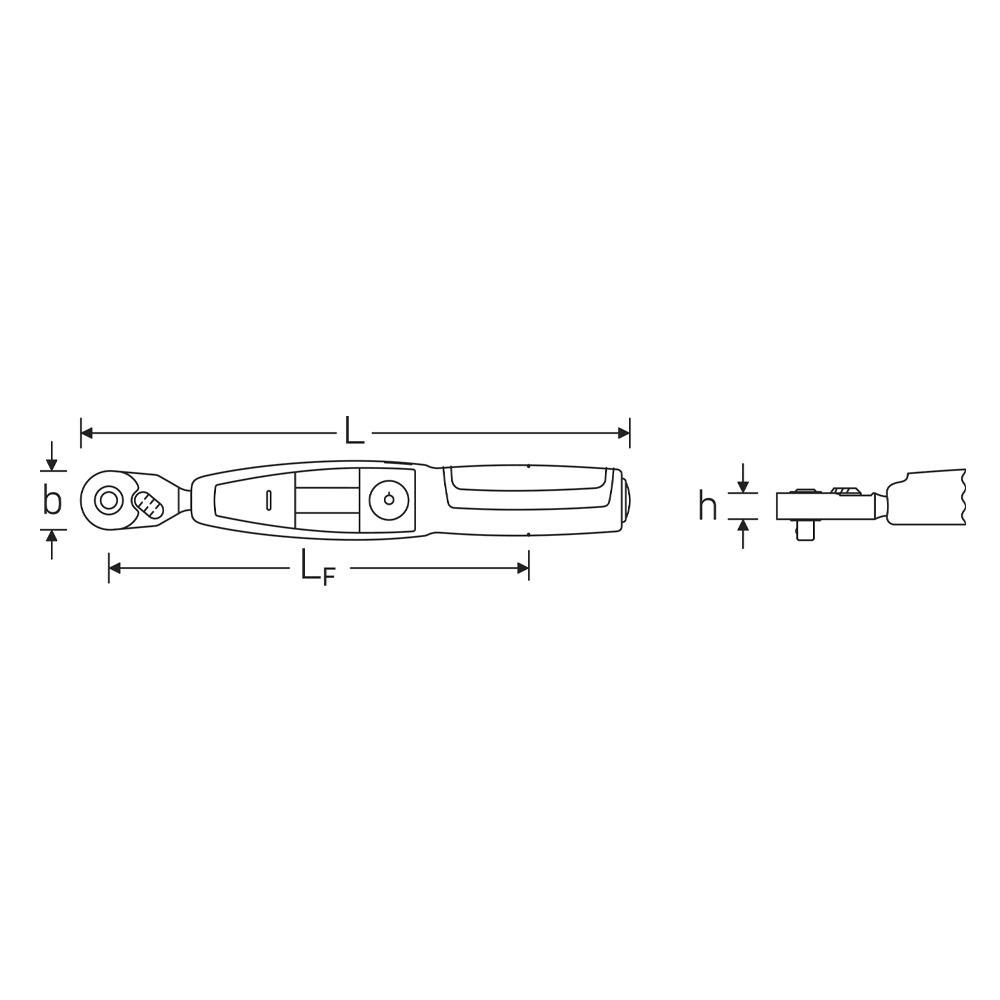

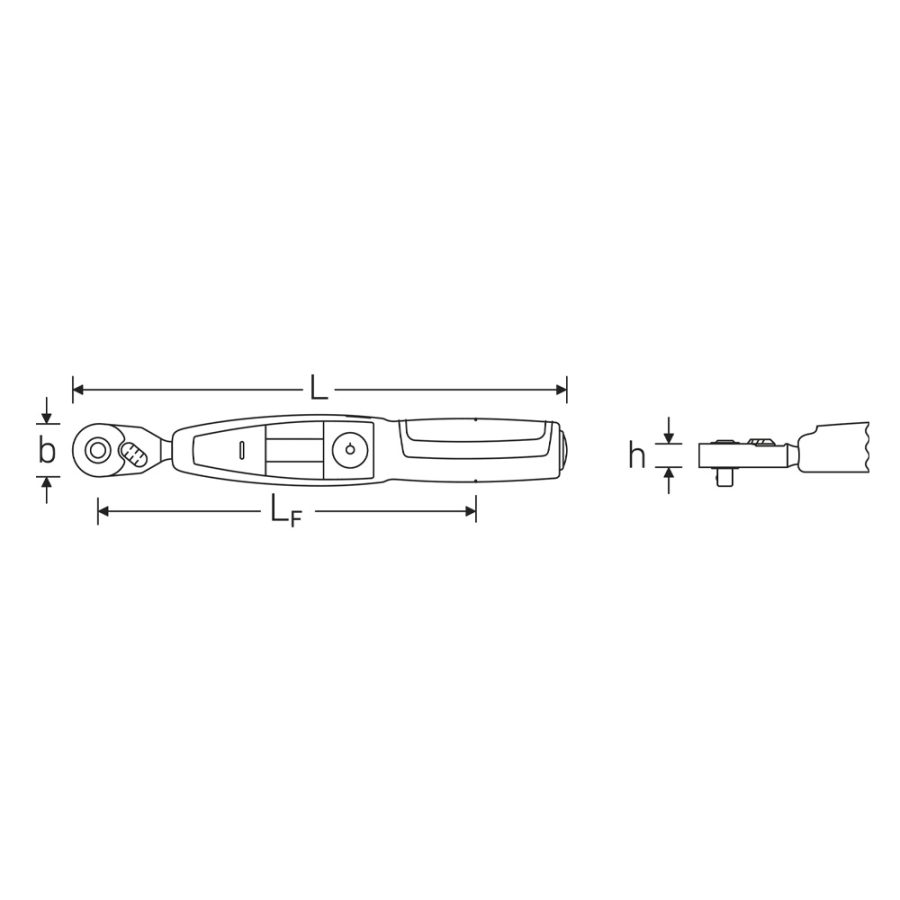

| Product no. | Model | Measuring range N·m | Measuring range cN·m | MA N·m | Nominal value N·m | Scale division ft-lb | Scale division in-lb | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Battery type | LF | Weight (g) | Weight with box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96504502 | 701/2 | 1-20 N·m | 100-2000 cN·m | 1 N·m | 20 N·m | 0,7-15 ft·lb | 9-180 in·lb | 1/4 | 210 mm | 22,6 mm | 10 mm | Lithium-Batterie 3,6 V, Typ 14500 | 160 mm | 145 g | 710 g |
| 96504602 | 701/2 | 1-20 N·m | 100-2000 cN·m | 1 N·m | 20 N·m | 0,7-15 ft·lb | 9-180 in·lb | 1/4 | 210 mm | 22,6 mm | 10 mm | 160 mm | 132 g | 700 g |
Technologies and features
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
Fine-tooth ratchet mechanism
Our fine-tooth ratchets with 80 teeth re-engage after just 4.5° for maximum precision in confined spaces. 8 pairs of parallel teeth simultaneously ensure maximum load-bearing capacity and particularly smooth running, even at high torques.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
Properties
- idicating type
- with permanently installed fine-tooth ratchet
- 80 teeth allow for a working angle of just 4.5° – enabling you to work efficiently, even in the tightest spaces
- with QuickRelease safety lock
- very slim and compact design for small torques from 1-20 N·m
- measurement independent of the point of force application
- units of measurement: N·m, cN·m, ft·lb, in·lb
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- results can be documented (with SensoMaster), evaluation of bolted joint by coloured LEDs, buzzer, and vibration
- supplied with 3.6 V lithium-metal battery, type 14500, packaged according to UN3091, Class 9
- adjustable joint parameters
- with 2-component handle
- in a sturdy plastic box
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
