Torque Tester

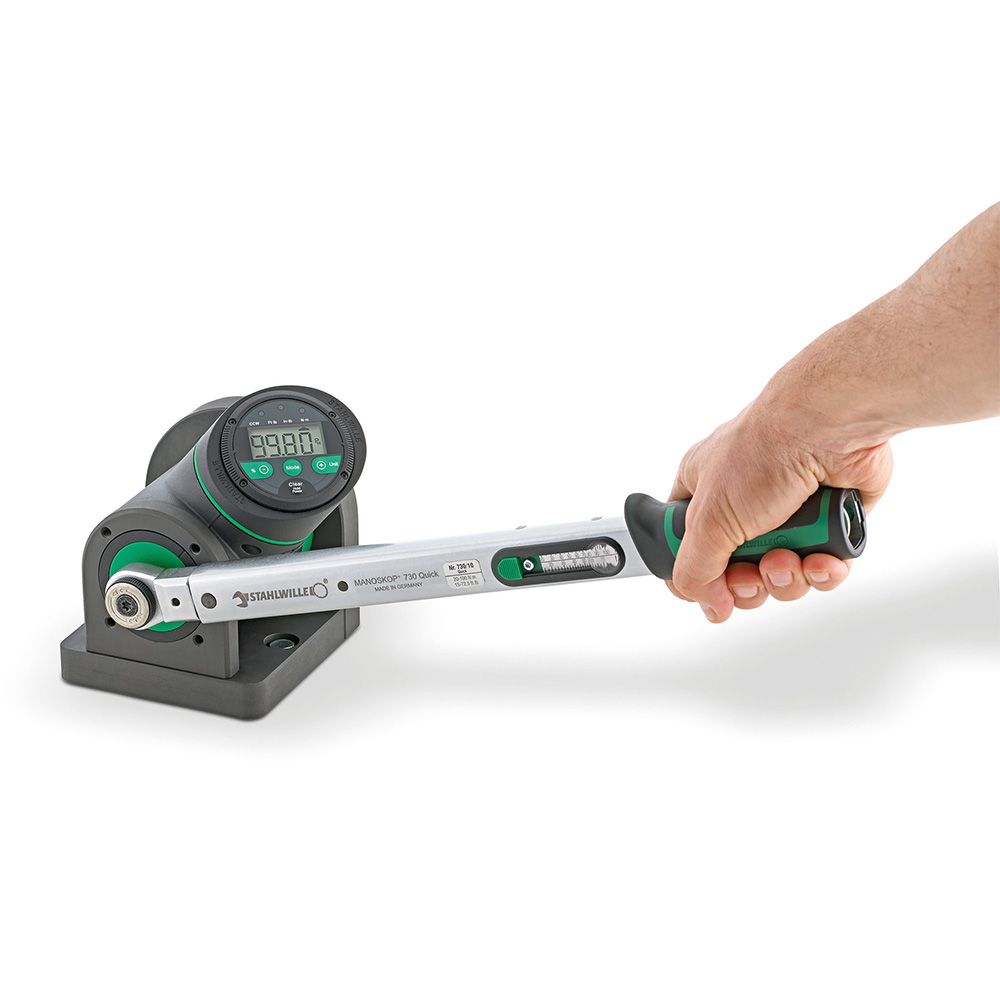

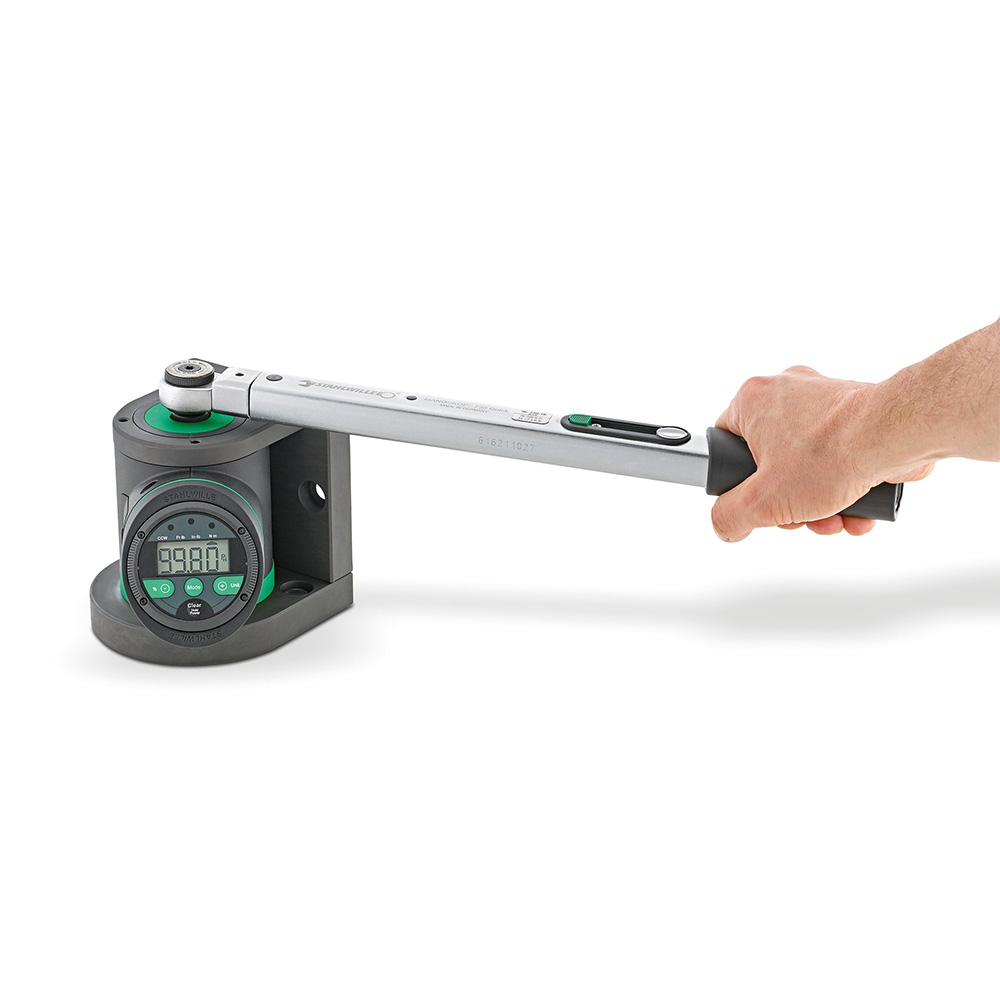

Electronic testing device for checking and adjusting indicating and triggering torque wrenches.
Simple, quick and reliable testing of torque wrenches to ensure quality in production.
Measurement in the large torque range from 1 to 1.500 N·m.
Simple documentation of the measured values on the PC via USB interface.
The large LCD can be rotated 180° and is easy to read from any position.

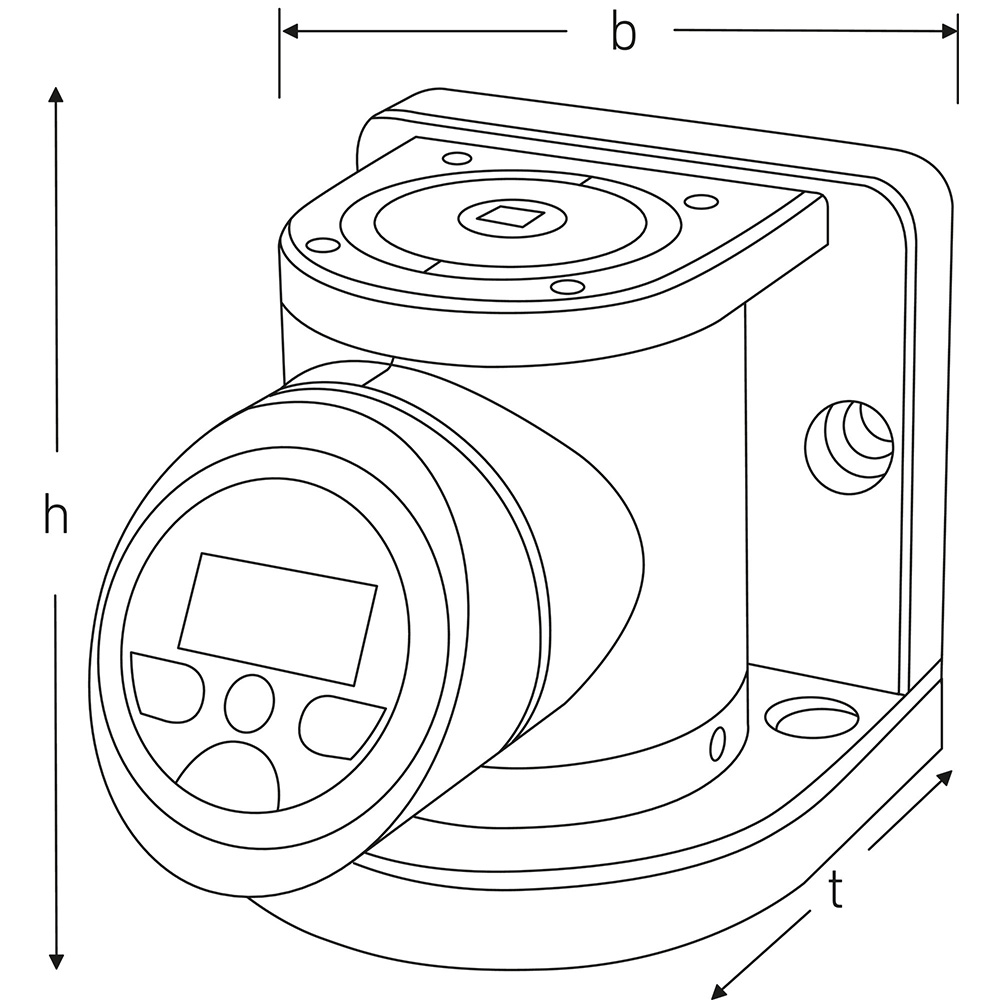

Product no.	Model	Model No.	Measuring range N·m	Measuring range ft-lb	Measuring range in-lb	Width mm (b)	Height mm (h)	Internal square [inch]	t	Number of digits	Weight (g)	Weight with box
96521209	SmartCheck USB	SmartCheck 400 USB	40-400 N·m	30-295 ft·lb	354-3540 in·lb	120 mm	124 mm	3/4 “	167 mm	4	5690 g	7036 g
96521210	SmartCheck USB	SmartCheck 800 USB	80-800 N·m	59-590 ft·lb	708-7081 in·lb	120 mm	124 mm	3/4 “	167 mm	4	5690 g	7036 g
96521211	SmartCheck USB	SmartCheck 1500 USB	150-1500 N·m	111-1106 ft·lb	1328-13276 in·lb	120 mm	124 mm	1 “	167 mm	4	5912 g	7258 g
96521213	SmartCheck USB	SmartCheck 10 USB	0,25-10 N·m	0,184-7,4 ft·lb	8,9-88,5 in·lb in·lb	120 mm	124 mm	1/4 “	167 mm	6	5210 g	6556 g
96521214	SmartCheck USB	SmartCheck 135 USB	5-135 N·m	3,7-99,6 ft·lb	44,3-1195 in·lb	120 mm	124 mm	3/8 “	167 mm	6	5310 g	6656 g

Technologies and features

DIN EN ISO 6789-2

Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.

Properties

for testing indicating and triggering torque wrenches
with interchangeable square drive adapters for square drives (from 3/8″ to 1/4″ with SmartCheck 100 USB; from 3/4″ to 1/2″ for SmartCheck 400 USB)

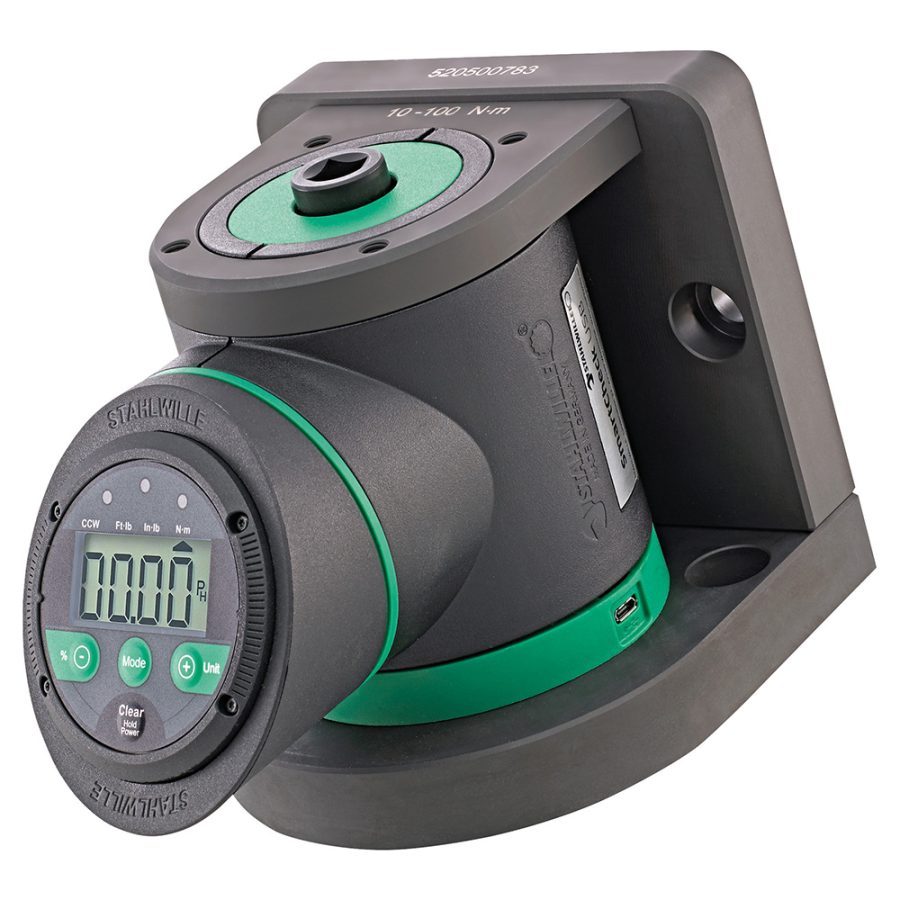

large LCD for optimum readability
the display, the display holder, and the base can be rotated 180°
compact design
waterproof display and foil keyboard; case made of impact-resistant plastic
simple installation thanks to pre-drilled holes in the mounting bracket

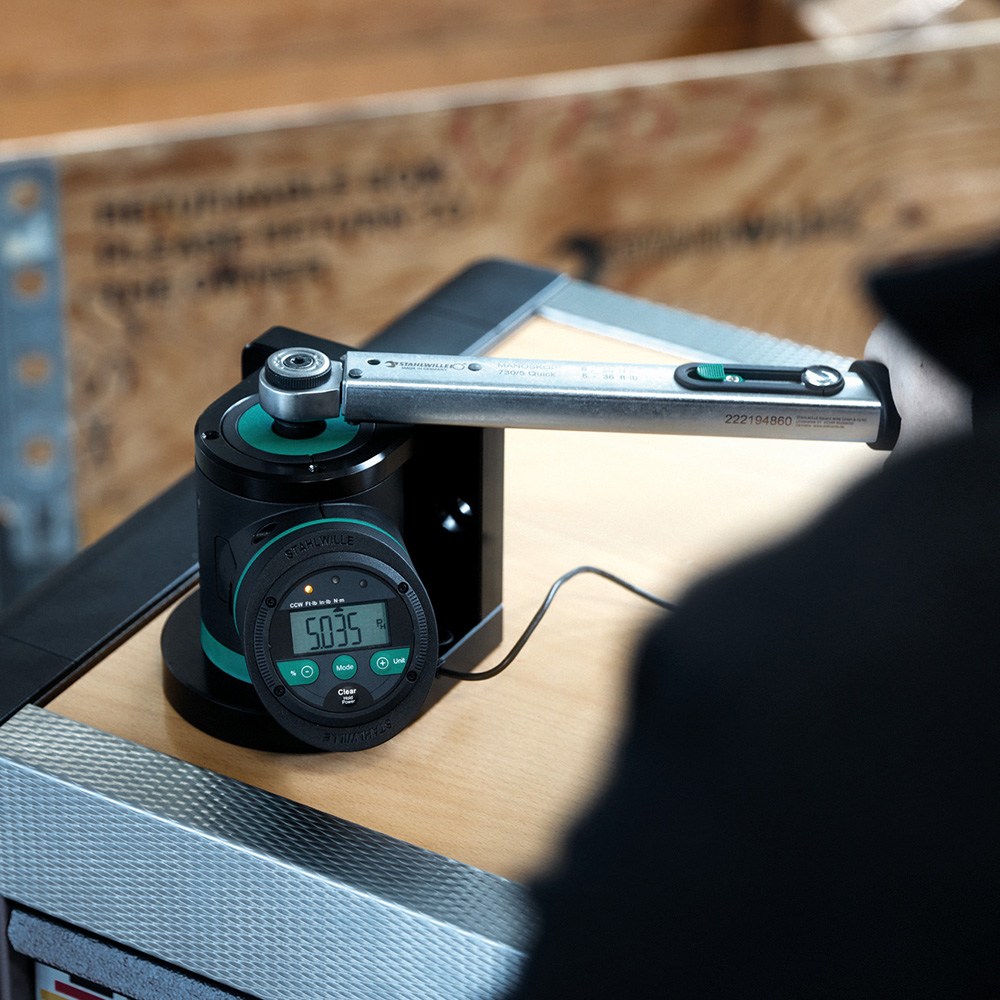

horizontal or vertical installations
for controlled right and left-hand torque testing
3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
customised input of target torques and tolerances for evaluating the measured value possible
with integrated visual and acoustic overload protection
3 measuring units (N·m, ft·lb, in·lb)

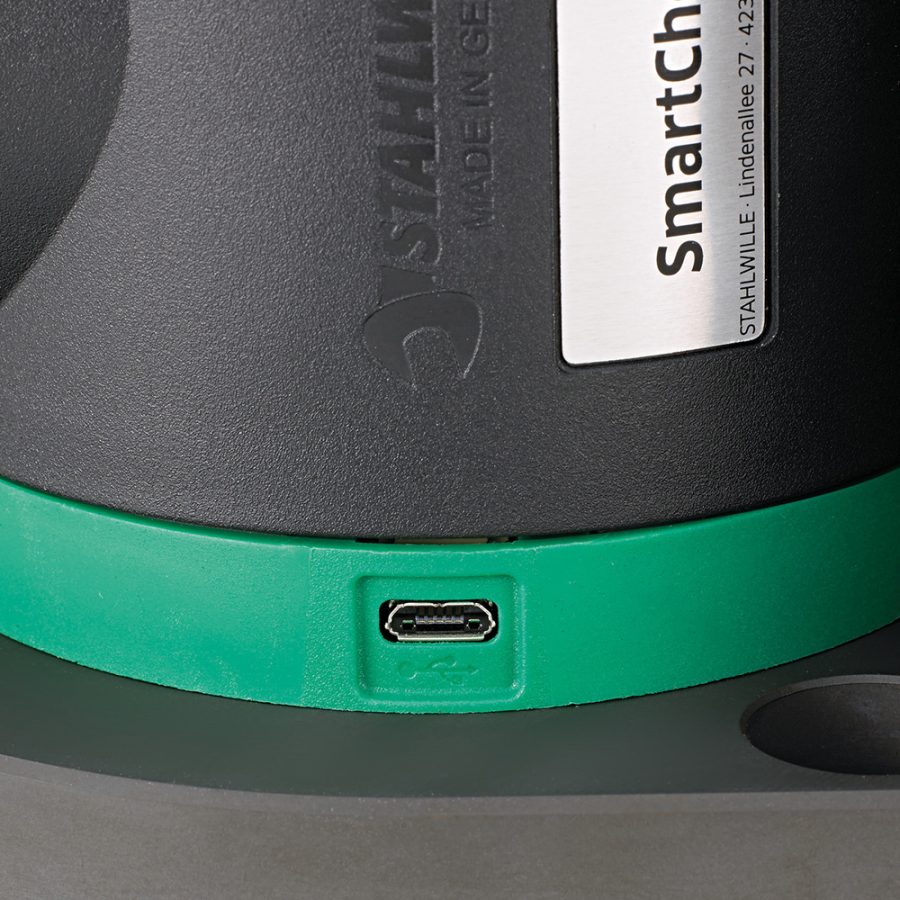

micro USB interface for data export and for optional power supply
data storage for up to 200 data records, including date and time stamp
CheckMaster documentation software for transferring values and creating test certificates is available free of charge at www.stahlwille.de
operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
with factory calibration certificate

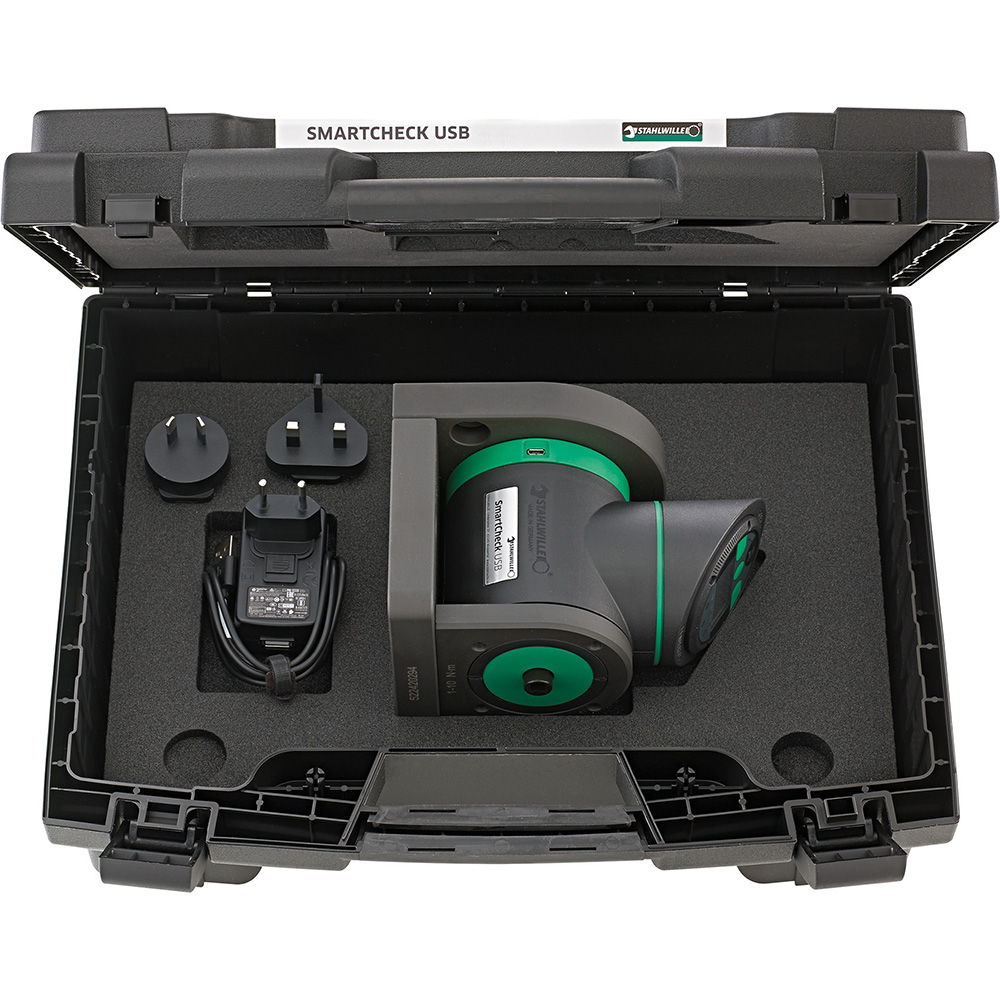

delivered in a sturdy plastic box
display deviation ± 1%
