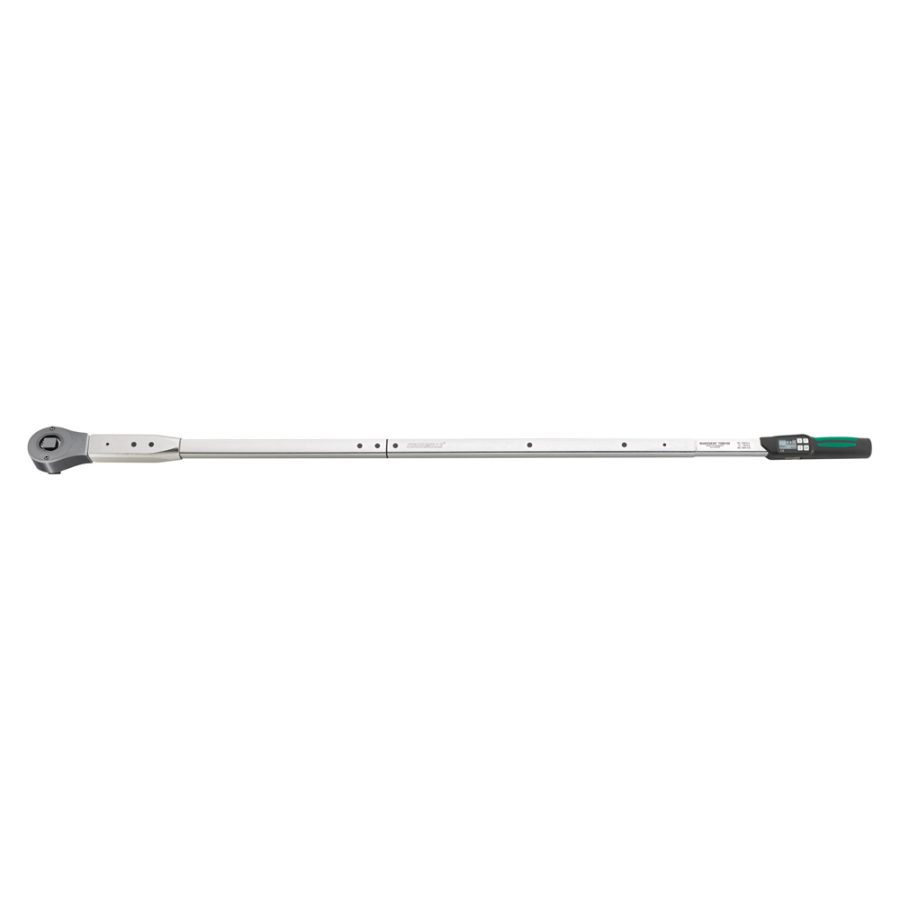

Service/series MANOSKOP® torque wrenches with reversible ratchet 730DR
- With patented electromechanical cycle: precise electronic measurement combined with the familiar mechanical ‘click’.
- Optical evaluation of the bolted connection.
- Easy documentation of the measured values on a PC via the USB interface.
- Adjustment and logical menu navigation are carried out via a clearly arranged and intuitive 4-button keypad.
- Automatic correction of the tightening torque for varying centre distances for error-free working with different insert tools.
| Product no. | Model | Size | Tool holder size [internal square] | Measuring range N·m | Measuring range ft-lb | Measuring range in-lb | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Number of teeth | External square [inch] | Battery type | Setting display resolution N·m | Adjustment display resolution ft-lb | Adjustment display resolution in-lb | Weight (g) | Weight with box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96501800 | 730DR | 100 | 22 x 28 mm | 100-1000 N·m | 74-750 ft·lb | 900-9000 in·lb | 100 N·m | 1,000 N·m | 3/4 | 1439 mm | 120 mm | 100 mm | 30 | 3/4 “ | Mignon (AA) 1,5V | 1,0/0,1 N·m | 1,0/0,1 ft·lb | 10/1,0 in·lb | 6910 g | 12500 g |
| 96501810 | 730DR | 10 | 9 x 12 mm | 10-100 N·m | 7,4-75 ft·lb | 90-900 in·lb | 10 N·m | 100 N·m | 1/2 | 501 mm | 95 mm | 74 mm | 60 | Mignon (AA) 1,5V | 0,2/0,1 N·m | 0,2/0,1 ft·lb | 2/1,0 in·lb | 1232 g | 1657 g | |
| 96501820 | 730DR | 20 | 14 x 18 mm | 20-200 N·m | 15-150 ft·lb | 180-1800 in·lb | 20 N·m | 200 N·m | 1/2 | 595 mm | 95 mm | 74 mm | 60 | 1/2 “ | Mignon (AA) 1,5V | 0,5/0,1 N·m | 0,5/0,1 ft·lb | 5/1,0 in·lb | 1663 g | 2198 g |
| 96501840 | 730DR | 40 | 14 x 18 mm | 40-400 N·m | 30-300 ft·lb | 360-3600 in·lb | 40 N·m | 400 N·m | 3/4 | 738 mm | 83 mm | 70 mm | 60 | 3/4 “ | Mignon (AA) 1,5V | 1,0/0,1 N·m | 1,0/0,1 ft·lb | 10/1,0 in·lb | 2232 g | 4722 g |
| 96501865 | 730DR | 65 | 14 x 18 mm | 65-650 N·m | 48-480 ft·lb | 580-5800 in·lb | 65 N·m | 650 N·m | 3/4 | 975 mm | 85 mm | 70 mm | 60 | 3/4 “ | Mignon (AA) 1,5V | 1,0/0,1 N·m | 1,0/0,1 ft·lb | 10/1,0 in·lb | 3767 g | 6530 g |
| 96501880 | 730DR | 80 | 22 x 28 mm | 80-800 N·m | 60-600 ft·lb | 720-7200 in·lb | 80 N·m | 800 N·m | 3/4 | 1255 mm | 120 mm | 90 mm | 30 | 3/4 “ | Mignon (AA) 1,5V | 1,0/0,1 N·m | 1,0/0,1 ft·lb | 10/1,0 in·lb | 6492 g | 12500 g |
| 96502065 | 730DR | II/65 | 22 x 28 mm | 65-650 N·m | 48-480 ft·lb | 580-5800 in·lb | 65 N·m | 650 N·m | 3/4 | 977 mm | 140 mm | 100 mm | 60 | 3/4 “ | Mignon (AA) 1,5V | 1,0/0,1 N·m | 1,0/0,1 ft·lb | 10/1,0 in·lb | 3994 g | 9000 g |
Technologies and features
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
Properties
- includes reversible ratchet No. 735
- patented electromechanical release
- acoustic and visual trigger signal
- mount for interchangeable insert tools
- QuickRelease safety lock
- quick setup via a convenient keypad
- extension length compensation function: automatic compensation of the tightening torque when a deviating extension length is entered
- overload protection by acoustic and optical warning signals
- automatic key lock prevents accidental adjustment of settings
- indicating mode functions in both directions
- units of measurement: N·m, ft·lb, in·lb
- different tolerance limits adjustable depending on the type of bolted joint
- optical evaluation of the result by green and red display
- additional locking of the presets (function mode, trigger or target value, unit of measure, tolerance value, saving, extension length) by PIN
- stores up to 7,500 results
- USB interface
- automatic warning of the next calibration date
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- in sturdy plastic box (sizes 40-100 in steel box)
- supplied with 2 x 1.5 V AA batteries
- NiMH batteries AA/LR6, 1.2 V can be used
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 2%, ± 1 digit
