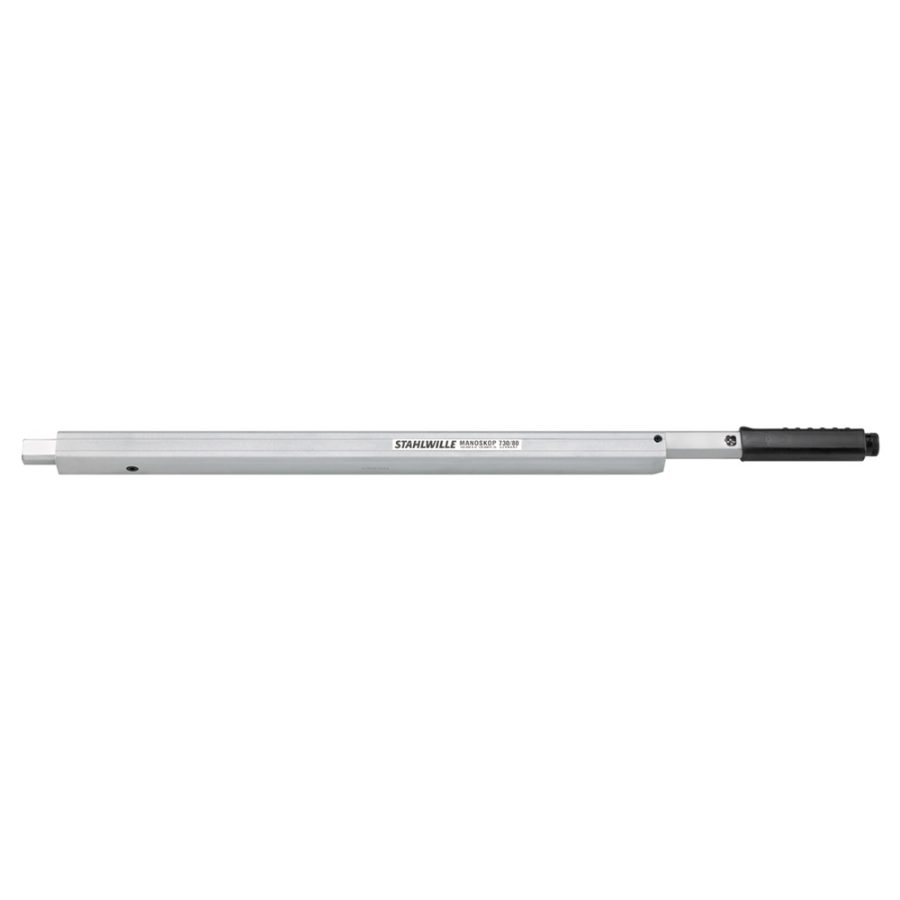

Torque wrench service MANOSKOP® with holder for shell tools 730/80
- dual scale N·m/ft·lb
- with holder for interchangeable shell tools
- when combined with adaptor No. 7370/80, 14 x 18 mm insert tools can also be used (max. 650 N·m)
- delivered in a textile bag
Description
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | Scale division N·m | Scale division ft-lb | External square drive (mm) | Length mm (L) | Width mm (b) | Height mm (h) | LF | SF | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50180080 | 730/80 | 160-800 N·m | 120-600 ft·lb | 20 N·m | 20 ft·lb | 24,5 x 28 mm | 970 mm | 46 mm | 43 mm | 990 mm | 95 mm | 4925 g |
Technologies and features
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
