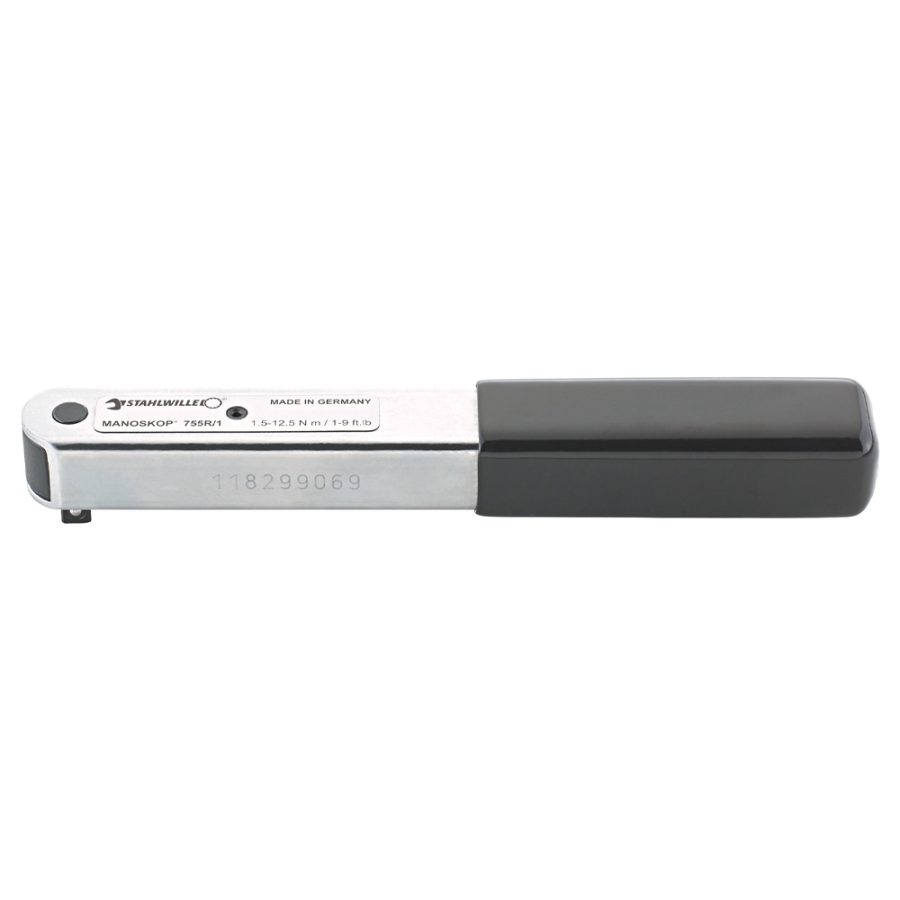

Torque wrench series MANOSKOP® with fixed ratchet 755R/1

clicking type with dual stop signal
for work on assembly lines or for repetitive production tasks.
no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
measurements are independent of the point of application of force
for controlled clockwise tightening
with permanently installed ratchet
22 teeth
particularly slim design
handle and shaft made of square steel pipe
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
can be supplied pre-set at defined torque value and with certification (additional charge applies)
accuracy ± 4%

Product no.	Model	Measuring range N·m	Measuring range ft-lb	MA N·m	Nominal value N·m	External square drive (inch)	Length mm (L)	Width mm (b)	Height mm (h)	Weight (g)
50100001	755R/1	1.5-12.5 N·m	1,0-9,0 ft·lb	1.5 N·m	12.5 N·m	1/4	173,5 mm	22 mm	18 mm	335 g
