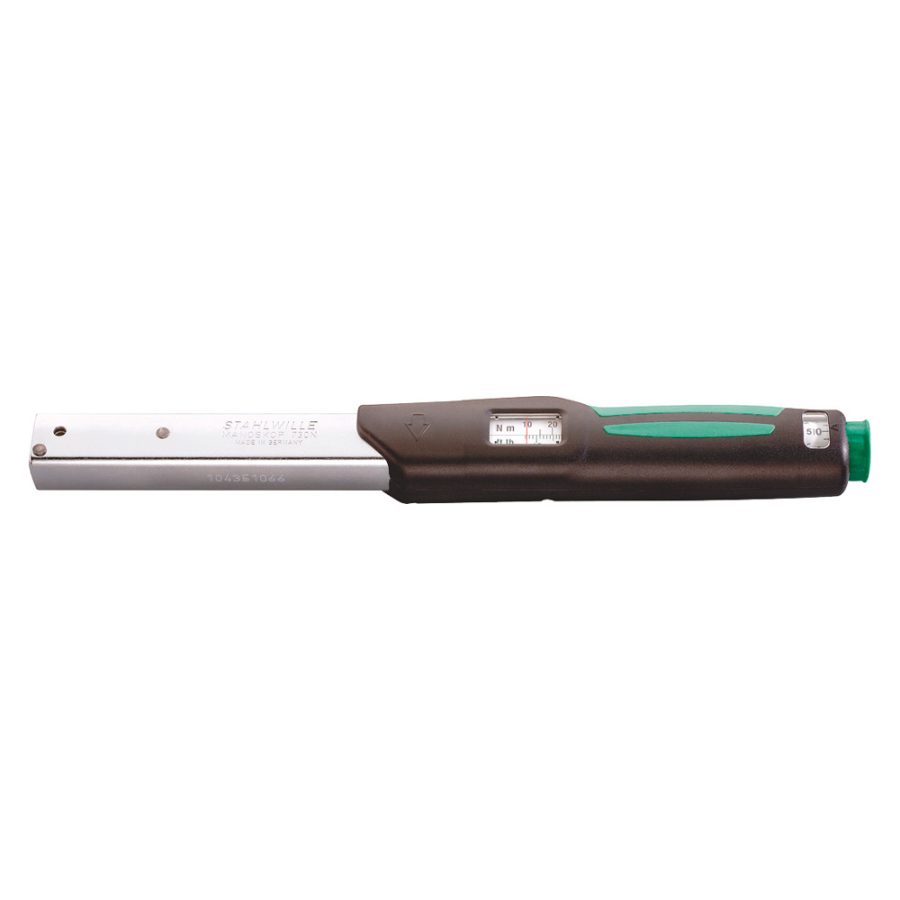

Torque wrench service MANOSKOP® with holder for insert tools 730N

clicking type with dual stop signal
no reset to ‘0’ required
the measuring element is only under load when a force is applied
with holder for interchangeable insert tools
with QuickRelease safety lock
dual scale N·m/ft·lb
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
counter-clockwise tightening by turning the insert tools over
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
easy adjustment without disassembly via 2 external adjustment screws
supplied in a textile bag (from size 65)
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 3%

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	MA N·m	Nominal value N·m	Scale division N·m	Scale division ft-lb	Fine scale division	Length mm (L)	Width mm (b)	Height mm (h)	LF	SF	Weight (g)
50181005	730N	5	9 x 12 mm	10-50 N·m	7-37 ft·lb	10 N·m	50 N·m	5 N·m	1 ft·lb	0,25 N·m	330 mm	28 mm	23 mm	280,5 mm	17,5 mm	831 g
50181010	730N	10	9 x 12 mm	20-100 N·m	15-75 ft·lb	20 N·m	100 N·m	10 N·m	2,5 ft·lb	0,5 N·m	386 mm	28 mm	23 mm	336 mm	17,5 mm	988 g
50181012	730N	12	14 x 18 mm	25-130 N·m	20-95 ft·lb	25 N·m	130 N·m	10 N·m	2,5 ft·lb	0,5 N·m	421 mm	28 mm	23 mm	379 mm	25 mm	1128 g
50181020	730N	20	14 x 18 mm	40-200 N·m	30-150 ft·lb	40 N·m	200 N·m	10 N·m	5 ft·lb	1 N·m	467 mm	28 mm	23 mm	424,5 mm	25 mm	1264 g
50181040	730N	40	14 x 18 mm	80-400 N·m	60-300 ft·lb	80 N·m	400 N·m	20 N·m	10 ft·lb	2 N·m	607 mm	28 mm	23 mm	564,5 mm	25 mm	1655 g
50181065	730N	65	14 x 18 mm	130-650 N·m	100-480 ft·lb	130 N·m	650 N·m	50 N·m	20 ft·lb	2,5 N·m	890 mm	30,6 mm	25,6 mm	848 mm	25 mm	3231 g
50181080	730N	80	22 x 28 mm	160-800 N·m	120-600 ft·lb	160 N·m	800 N·m	100 N·m	25 ft·lb	5 N·m	1178 mm	30,6 mm	25,6 mm	1167 mm	55 mm	4825 g
50181100	730N	100	22 x 28 mm	200-1000 N·m	150-750 ft·lb	200 N·m	1,000 N·m	100 N·m	25 ft·lb	5 N·m	1363 mm	30,6 mm	25,6 mm	1352 mm	55 mm	5000 g
50181365	730N	II/65	22 x 28 mm	130-650 N·m	100-480 ft·lb	130 N·m	650 N·m	50 N·m	20 ft·lb	2,5 N·m	911 mm	30,6 mm	25,6 mm	900 mm	55 mm	3504 g

Technologies and features

QuickRelease

The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.

QuickSelect

Lightning-fast target value setting: Unlock the adjustment knob, set the value, and lock the knob again.

Low-wear bending beam system

Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.

2-component handle

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.

DIN EN ISO 6789-2

Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
