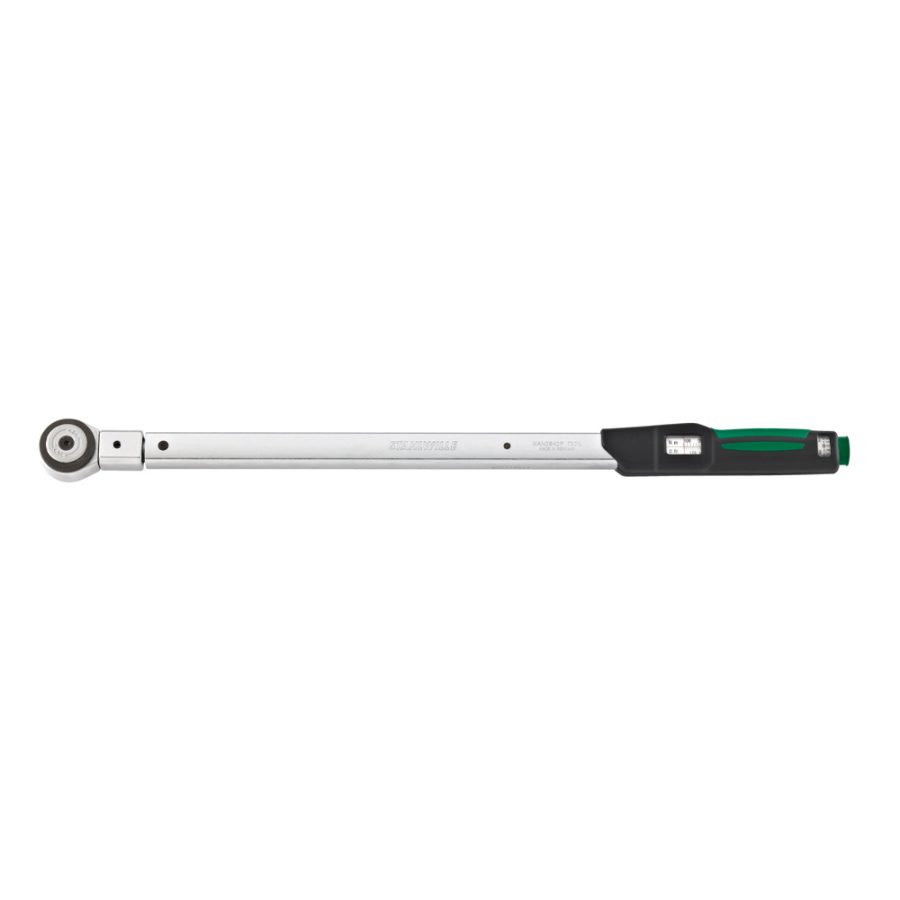

Torque wrench service MANOSKOP® with holder for insert tools 730 Fix

for work on assembly lines or for repetitive production tasks
clicking type with dual stop signal
adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
no reset to ‘0’ required
the measuring element is only under load when a force is applied
fast, precise adjustment with QuickSelect quick adjustment
dual scale N·m/ft·lb
mount for interchangeable insert tools
with QuickRelease safety lock
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
counter-clockwise tightening by turning the insert tools over
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
in sturdy plastic box (sizes 80-100 in sheet steel box)
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 3%

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	MA N·m	Nominal value N·m	Scale division N·m	Scale division ft-lb	Fine scale division	Length mm (L)	Width mm (b)	Height mm (h)	LF	SF	Weight (g)	Weight with box
96503005	730 Fix	5	9 x 12 mm	10-50 N·m	7-37 ft·lb	10 N·m	50 N·m	5 N·m	1 ft·lb	0,25 N·m	330 mm	28 mm	23 mm	280,5 mm	17,5 mm	828 g	1632 g
96503010	730 Fix	10	9 x 12 mm	20-100 N·m	15-75 ft·lb	20 N·m	100 N·m	10 N·m	2,5 ft·lb	0,5 N·m	386 mm	28 mm	23 mm	336 mm	17,5 mm	986 g	1788 g
96503012	730 Fix	12	14 x 18 mm	25-130 N·m	20-95 ft·lb	25 N·m	130 N·m	10 N·m	2,5 ft·lb	0,5 N·m	421 mm	28 mm	23 mm	379 mm	25 mm	1124 g	1928 g
96503020	730 Fix	20	14 x 18 mm	40-200 N·m	30-150 ft·lb	40 N·m	200 N·m	10 N·m	5 ft·lb	1 N·m	467 mm	28 mm	23 mm	424,5 mm	25 mm	1266 g	1890 g
96503040	730 Fix	40	14 x 18 mm	80-400 N·m	60-300 ft·lb	80 N·m	400 N·m	20 N·m	10 ft·lb	2 N·m	607 mm	28 mm	23 mm	564,5 mm	25 mm	1666 g	2444 g
96503065	730 Fix	65	14 x 18 mm	130-650 N·m	100-480 ft·lb	130 N·m	650 N·m	50 N·m	20 ft·lb	2,5 N·m	890 mm	30,6 mm	25,6 mm	848 mm	25 mm	3242 g	6500 g
96503080	730 Fix	80	22 x 28 mm	160-800 N·m	120-600 ft·lb	160 N·m	800 N·m	100 N·m	25 ft·lb	5 N·m	1178 mm	30,6 mm	25,6 mm	1167 mm	55 mm	4794 g	10500 g
96503100	730 Fix	100	22 x 28 mm	200-1000 N·m	150-750 ft·lb	200 N·m	1,000 N·m	100 N·m	25 ft·lb	5 N·m	1363 mm	30,6 mm	25,6 mm	1352 mm	55 mm	5196 g	11000 g
96503465	730 Fix	II/65	22 x 28 mm	130-650 N·m	100-480 ft·lb	130 N·m	650 N·m	50 N·m	20 ft·lb	2,5 N·m	911 mm	30,6 mm	25,6 mm	900 mm	55 mm	3490 g	7000 g

Technologies and features

QuickSelect

Lightning-fast target value setting: Unlock the adjustment knob, set the value, and lock the knob again.

Low-wear bending beam system

Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.

DIN EN ISO 6789-2

Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.

2-component handle

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.

Adjustment Lock

The target torque can be quickly adjusted using the adjustment knob. The knob can then be removed to prevent subsequent adjustment. The supplied locking screw (TORX® Tamper Resistant) and an adhesive seal provide additional protection against tampering.
