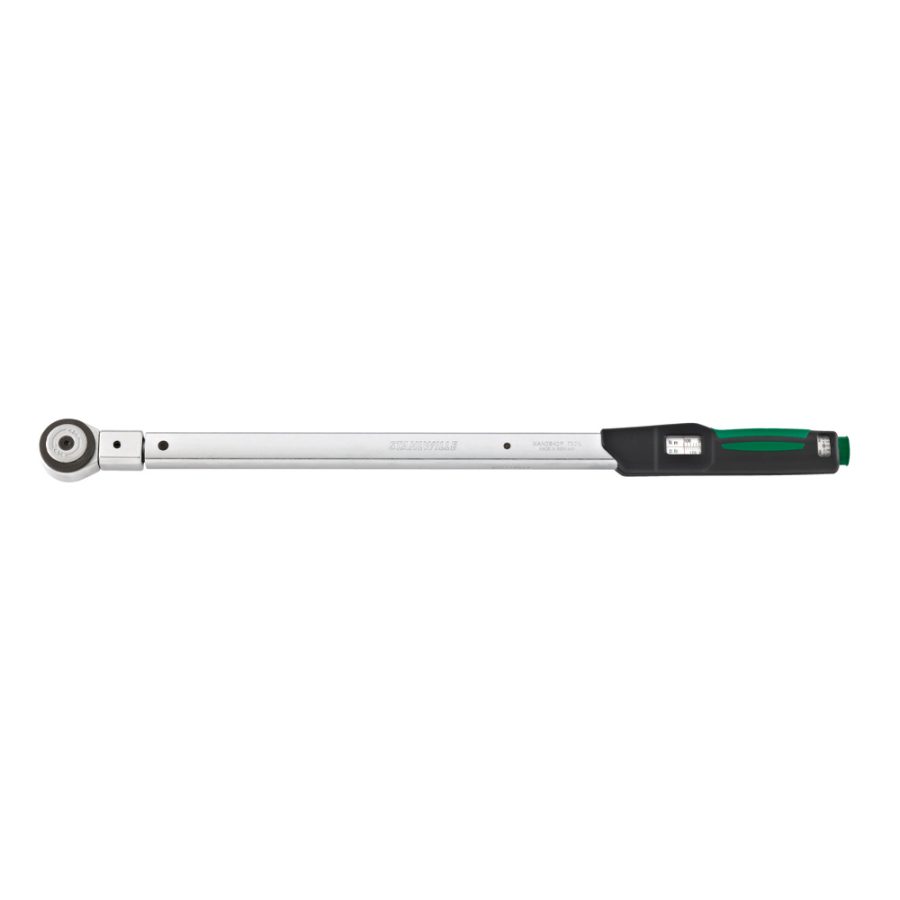

Torque wrench service MANOSKOP® with fine-tooth ratchet 730NR
- clicking type with dual stop signal
- no reset to ‘0’ required
- the measuring element is only under load when a force is applied
- with QuickRelease ratchet
- with QuickRelease safety lock
- fast, precise adjustment with QuickSelect quick adjustment
- dual scale N·m/ft·lb
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- in sturdy plastic box (size 65 in sheet steel box)
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
| Product no. | Model | Size | Measuring range N·m | Measuring range ft-lb | Scale division N·m | Scale division ft-lb | Fine scale division | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | LF | Weight (g) | Weight with box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96502140 | 730NR | 40 FK | 80-400 N·m | 60-300 ft·lb | 20 N·m | 10 ft·lb | 2 N·m | 3/4 | 657 mm | 28 mm | 50 mm | 23 mm | 31,5 mm | 564,5 mm | 2122 g | 2657 g |
| 96502265 | 730NR | 65 FK-HD | 130-650 N·m | 100-480 ft·lb | 50 N·m | 20 ft·lb | 2,5 N·m | 3/4 | 944 mm | 30,6 mm | 58 mm | 25,6 mm | 36 mm | 848 mm | 3698 g | 6188 g |
| 96503105 | 730NR | 5 FK | 10-50 N·m | 7-37 ft·lb | 5 N·m | 1 ft·lb | 0,25 N·m | 3/8 | 364 mm | 28 mm | 33 mm | 23 mm | 24 mm | 280,5 mm | 973 g | 1763 g |
| 96503110 | 730NR | 10 FK | 20-100 N·m | 15-75 ft·lb | 10 N·m | 2,5 ft·lb | 0,5 N·m | 1/2 | 420 mm | 28 mm | 33 mm | 23 mm | 24 mm | 336,5 mm | 1146 g | 1934 g |
| 96503120 | 730NR | 20 FK | 40-200 N·m | 30-150 ft·lb | 10 N·m | 5 ft·lb | 1 N·m | 1/2 | 513,5 mm | 28 mm | 43 mm | 23 mm | 26 mm | 425 mm | 1583 g | 2370 g |
Technologies and features
QuickSelect
Lightning-fast target value setting: Unlock the adjustment knob, set the value, and lock the knob again.
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
