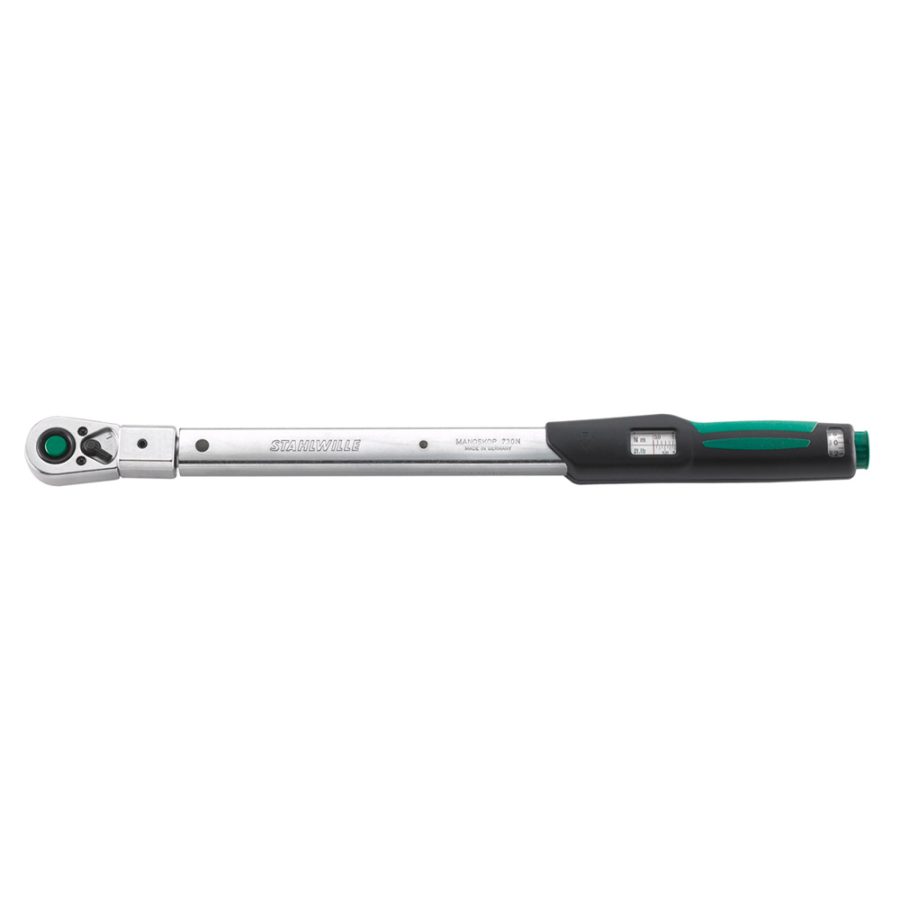

Torque wrench service MANOSKOP® with fixed QuickRelease ratchet 730NR QR
- clicking type with dual stop signal
- no reset to ‘0’ required
- the measuring element is only under load when a force is applied
- with permanently installed QuickRelease ratchet
- with QuickRelease safety lock
- fast, precise adjustment with QuickSelect quick adjustment
- dual scale N·m/ft·lb
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- in a sturdy plastic box
- 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
| Product no. | Model | Size | Measuring range N·m | Measuring range ft-lb | Scale division N·m | Scale division ft-lb | Fine scale division | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | LF | Weight (g) | Weight with box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96502105 | 730NR QR | 5QR FK | 10-50 N·m | 7-37 ft·lb | 5 N·m | 1 ft·lb | 0,25 N·m | 3/8 | 372,5 mm | 28 mm | 29 mm | 23 mm | 14,5 mm | 291 mm | 961 g | 1386 g |
| 96502110 | 730NR QR | 10QR FK | 20-100 N·m | 15-75 ft·lb | 10 N·m | 2,5 ft·lb | 0,5 N·m | 1/2 | 428,5 mm | 28 mm | 29 mm | 23 mm | 14,5 mm | 346,5 mm | 1129 g | 1554 g |
| 96502120 | 730NR QR | 20QR FK | 40-200 N·m | 30-150 ft·lb | 10 N·m | 5 ft·lb | 1 N·m | 1/2 | 526 mm | 28 mm | 41 mm | 23 mm | 18 mm | 438,5 mm | 1589 g | 2014 g |
Technologies and features
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
QuickSelect
Lightning-fast target value setting: Unlock the adjustment knob, set the value, and lock the knob again.
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
