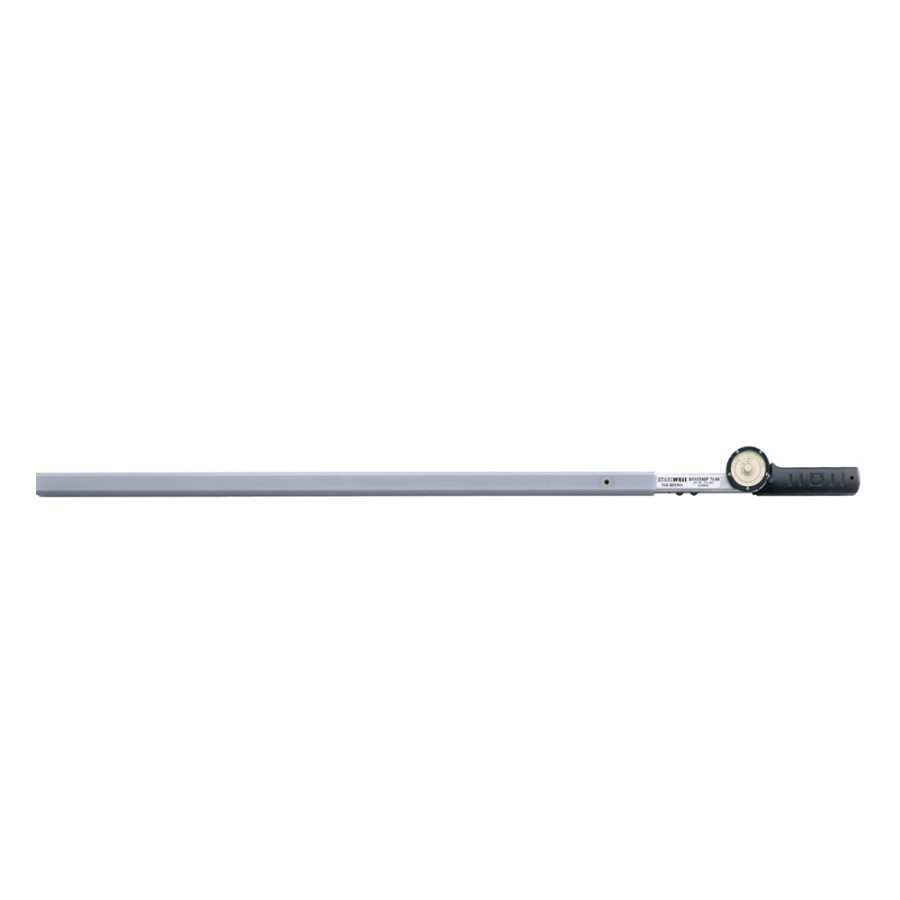

Torque wrench MANOSKOP® with dial gauge and holder for shell tools 71/80
- display
- mount for interchangeable shell tools
- when combined with adaptor No. 7370/80, 14 x 18 mm insert tools can also be used (max. 650 N·m)
- drag indicator dial gauge
- dual scale N·m/ft·lb
- scale made of special luminescent, bright yellow foil for clear readability of the display even in poor visibility conditions
- handle with integrated force balancing mechanism
- measuring element as bending plate in the handle
- with overload protection
- counter-clockwise tightening by turning the insert tools over
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- readjustment does not require disassembly
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- delivered in a textile bag
- accuracy ± 4%
Description
| Product no. | Model | Tool holder size [internal square] | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | Length mm (L) | Width mm (b) | Height mm (h) | LF | SF | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50030080 | 71/80 | 24,5 x 28 mm | 160-800 N·m | 120-600 ft·lb | 160 N·m | 800 N·m | 10 N·m | 10 ft·lb | 1048 mm | 28 mm | 24 mm | 1050 mm | 95 mm | 2300 g |
Technologies and features
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
