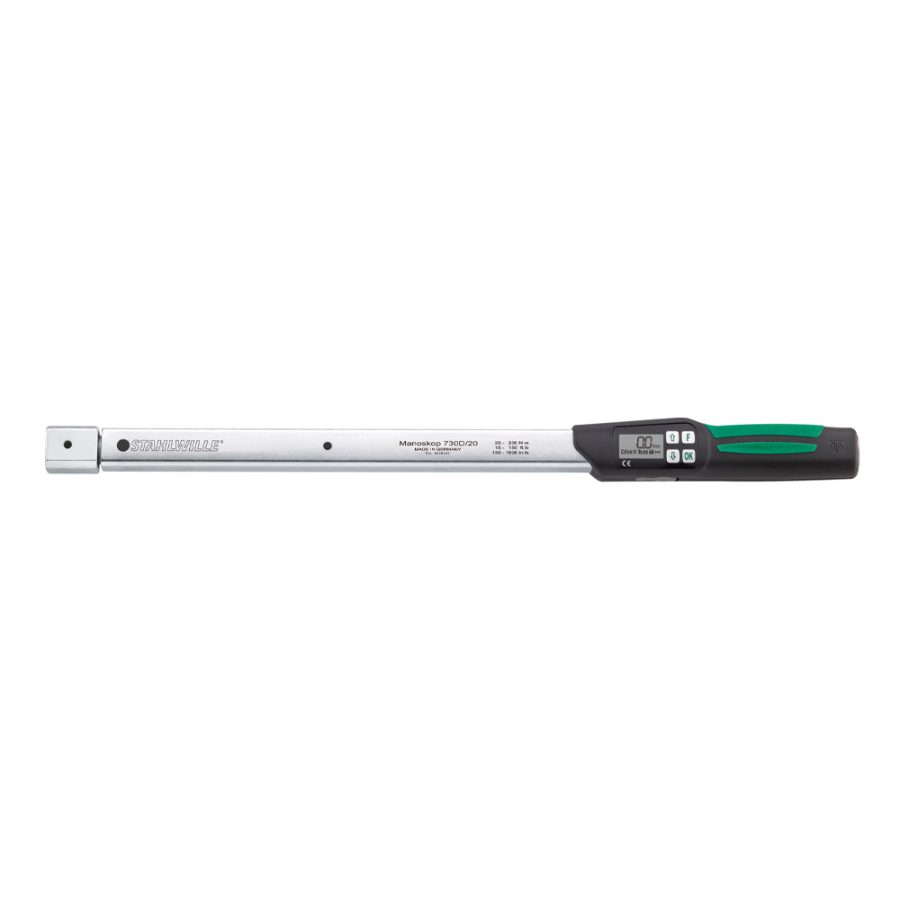

Service/series MANOSKOP® torque wrenches with holder for insert tools 730D

With patented electromechanical release: precise electronic measurement combined with the familiar mechanical ‘click’.
Visual evaluation of the bolted connection.
Easy documentation of the measured values on a PC via the USB interface.
Adjustment and logical menu navigation are carried out via a clearly arranged and intuitive 4-button keypad.
Automatic correction of the tightening torque for varying centre distances for error-free working with different insert tools.

Product no.	Model	Size	Tool holder size [internal square]	Measuring range N·m	Measuring range ft-lb	Measuring range in-lb	MA N·m	Nominal value N·m	Length mm (L)	Width mm (b)	Height mm (h)	Battery type	Setting display resolution N·m	Adjustment display resolution ft-lb	Adjustment display resolution in-lb	LF	SF	Weight (g)	Weight with box
96501710	730D	10	9 x 12 mm	10-100 N·m	7,4-75 ft·lb	90-900 in·lb	10 N·m	100 N·m	467 mm	28 mm	23 mm	Mignon (AA) 1,5V	0,2/0,1 N·m	0,2/0,1 ft·lb	2/1,0 in·lb	426,5 mm	17,5 mm	1085 g	1510 g
96501720	730D	20	14 x 18 mm	20-200 N·m	15-150 ft·lb	180-1800 in·lb	20 N·m	200 N·m	548 mm	28 mm	23 mm	Mignon (AA) 1,5V	0,5/0,1 N·m	0,5/0,1 ft·lb	5/1,0 in·lb	515 mm	25 mm	1361 g	1896 g
96501740	730D	40	14 x 18 mm	40-400 N·m	30-300 ft·lb	360-3600 in·lb	40 N·m	400 N·m	688 mm	28 mm	23 mm	Mignon (AA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	655 mm	25 mm	3300 g	5155 g
96501765	730D	65	14 x 18 mm	65-650 N·m	48-480 ft·lb	580-5800 in·lb	65 N·m	650 N·m	870 mm	30,6 mm	25,6 mm	Mignon (AA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	837 mm	25 mm	3300 g	6000 g
96501965	730D	II/65	22 x 28 mm	65-650 N·m	48-480 ft·lb	580-5800 in·lb	65 N·m	650 N·m	892 mm	30,6 mm	25,6 mm	Mignon (AA) 1,5V	1,0/0,1 N·m	1,0/0,1 ft·lb	10/1,0 in·lb	889 mm	55 mm	3224 g	7500 g
96502080	730D	80	22 x 28 mm	80-800 N·m	60-600 ft·lb	720-7200 in·lb	80 N·m	800 N·m	1160 mm	30,6 mm	25,6 mm	Mignon (AA) 1,5V	1,0/1,0 N·m	1,0/1,0 ft·lb	10/1,0 in·lb	1157 mm	55 mm	4577 g	10500 g
96502100	730D	100	22 x 28 mm	100-1000 N·m	74-750 ft·lb	900-9000 in·lb	100 N·m	1,000 N·m	1344 mm	30,6 mm	25,6 mm	Mignon (AA) 1,5V	1,0/1,0 N·m	1,0/1,0 ft·lb	10/1,0 in·lb	1341 mm	55 mm	4995 g	11000 g

Technologies and features

2-component handle

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.

DIN EN ISO 6789-2

Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.

Properties

patented electromechanical release
acoustic and visual trigger signal
mount for interchangeable insert tools
QuickRelease safety lock
quick setup via a convenient keypad
extension length compensation function: automatic compensation of the tightening torque when a deviating extension length is entered
overload protection by acoustic and optical warning signals
automatic key lock prevents accidental adjustment of settings
indicating mode functions in both directions
units of measurement: N·m, ft·lb, in·lb
different tolerance limits adjustable depending on the type of bolted joint
optical evaluation of the results by green and red display
additional locking of the presets (function mode, trigger or target value, unit of measure, tolerance value, saving, extension length) by PIN
stores up to 7,500 results
USB interface
automatic warning of the next calibration date
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
in sturdy plastic box (sizes 40-100 in steel box)
supplied with 2 x 1.5 V AA batteries. NiMH batteries AA/LR6, 1.2 V, can be used
2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 2%, ± 1 digit
