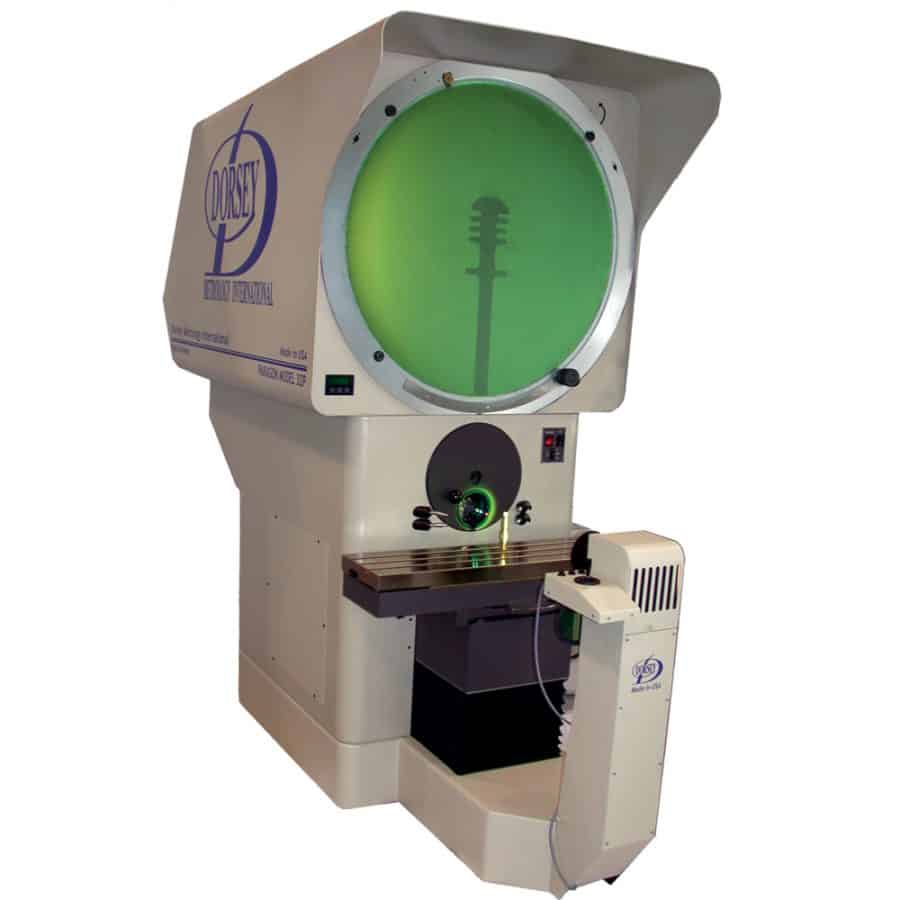

Dorsey 32” Horizontal Profile Projector – 32P

The 32P was designed with crisp, clear telecentric optics and a precision solid cast iron stage to be an instrument capable of handling almost any measurement/inspection requirement. This welded steel fabrication assures years of accurate, trouble free service.



  • 32″ (800mm) Vertical screen for optimum viewing
  • Erect and reversed profile image
  • High resolution ground glass screen with calibration reticle, 90 degree cross lines
  • Machined chart ring with vernier protractor, chart clips,1 minute graduation facilitates optimal alignment
  • Coated telecentric parfocal optics
  • 3 position rotary lens & condenser turret
  • Quartz halogen profile light source 24V, 150W
  • Bright 500W fiber optic surface illumination
  • Linear Scale Resolution 0.00025mm/.00001″
  • Solid cast iron, nickel plated stage
    • Triple universal dovetails accommodate a wide range of fixtures
    • 36″ x 8″ (914x200mm) Overall size
    • Solid crossed roller stage bearings
    • 500 lbs capacity
    • 24″ (610 mm) X-axis motorized travel
    • 10″ (250mm)Y-axis motorized travel
    • 3″ Motorized focus axis
    • ±15 Degree true parfocal helix stage adjustment with 5 minute vernier
    • Joystick control, computerized microstep motor controller with X and Y axes & focus
  • Integrated hood
  • NIST traceable calibration certificate
  • 2 Year limited warranty


Optional Features:

  • Internal edge detection

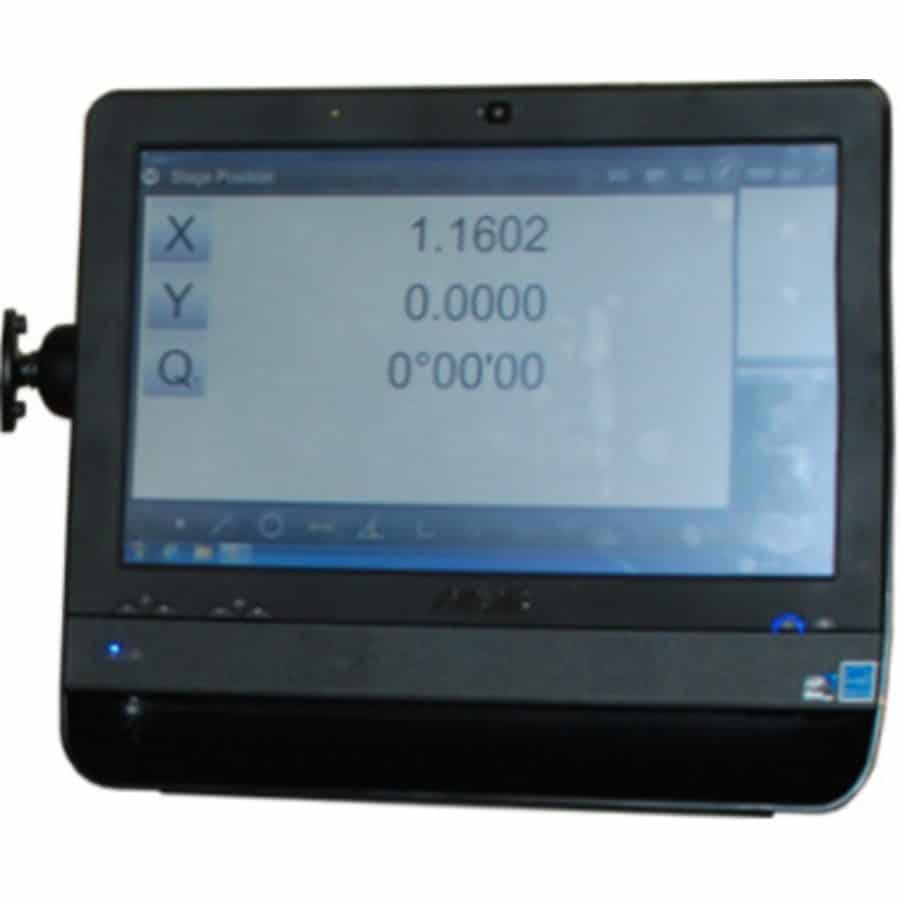

  • Output for electronic rotary screen protractor (Q-axis) with selectable 1 minute or 1/100 of a degree resolution
  • Choice of readout options
  • CNC computer controlled readout systems
  • Harsh Environment package
  • Extended hood & curtains
  • Wide selection of lenses
  • Tooling
