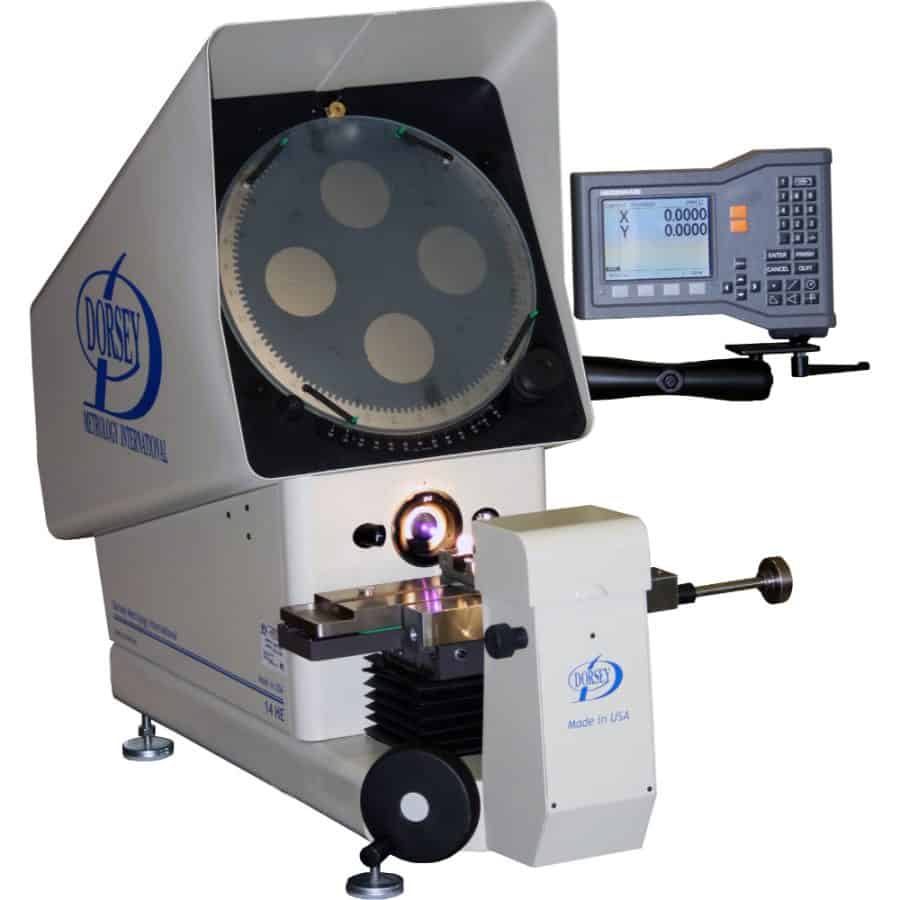

Dorsey 14” Horizontal Profile Projector – 14HE
The 14HE bench top comparator is Dorsey Metrology’s basic and most economical comparator with the same high quality features as the other comparators in our product line, but in a smaller package and a lower price. The addition of our extra long life LED surface illumination is another Dorsey innovation.
Description
Features:
- 14″ (350mm) angled high resolution glass screen for optimum viewing with 90 degree cross lines, calibration reticle and chart clips
- Reversed and inverted profile image
- Machined chart ring with vernier protractor, 1 minute graduation facilitates optimal alignment
- Coated telecentric parfocal optics
- Quick change single lens mount
- Integrated hood
- Solid cast iron nickel plated stage
- 3 axis solid rail crossed roller bearings
- Single universal dovetail stage
- 16″ x 4″ overall stage size
- 8″ / 200mm X axis travel with “glide release”
- 4″ / 100mm Y axis travel (vertical movement/rise & fall)
- 50 lbs capacity
- ± 5 degree light source helix adjustment
- NIST traceable calibration certificate
- 2 year limited warranty
Optional Features:
- Internal edge detection
- LED surface illumination
- Choice of readout options
- Output for electronic rotary screen protractor (Q axis) on readout with selectable 1 minute or 1/100 of a degree resolution
- Harsh Environment package
