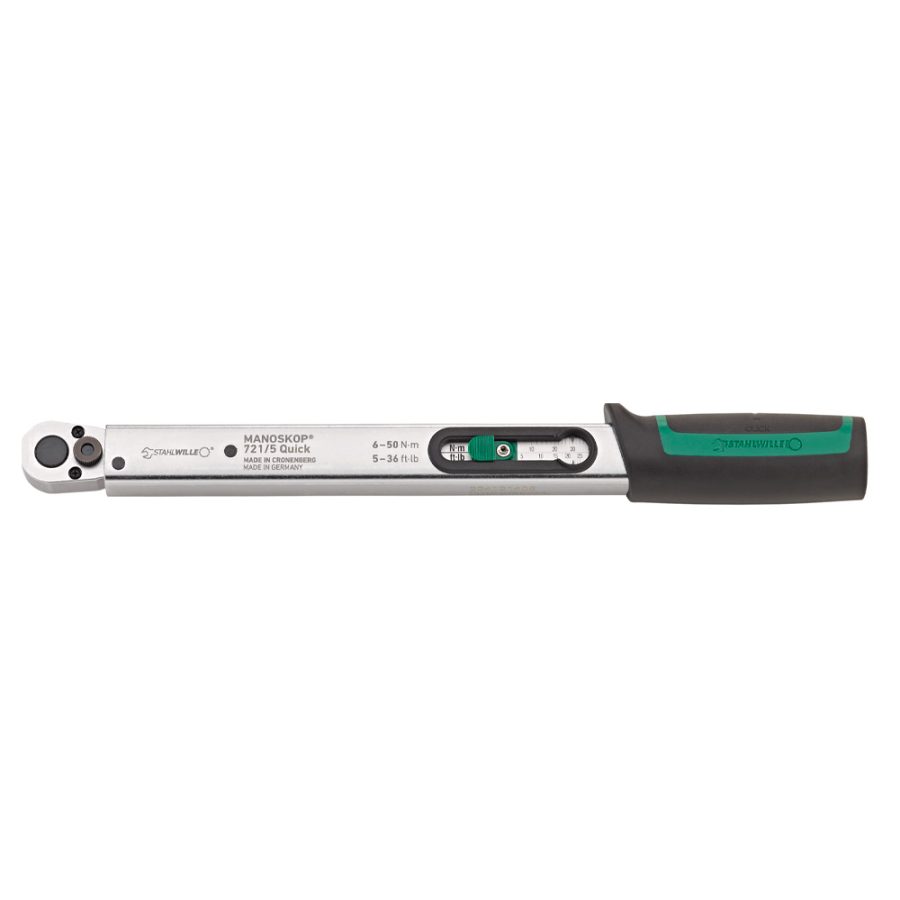

Torque wrench standard MANOSKOP® with fixed ratchet 721 Quick
- Made in Germany – STAHLWILLE setting torque wrench, length 352 mm, with calibration certificate (DIN EN ISO 6789-2:2017), 50204005.
- Patented, low-wear release system with flexible rod.
- Lightning-fast and precise torque adjustment.
- Continued loading after release or loading in the opposite direction will not damage the torque wrench.
| Product no. | Size | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | Number of teeth | LF | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50204005 | 5 | 721 Quick | 6-50 N·m | 5-36 ft·lb | 6 N·m | 50 N·m | 2 N·m | 1 ft·lb | 3/8 | 352 mm | 28 mm | 27,5 mm | 23 mm | 14,5 mm | 30 | 293 mm | 880 g |
| 50204015 | 15 | 721 Quick | 30-150 N·m | 25-110 ft·lb | 30 N·m | 150 N·m | 5 N·m | 5 ft·lb | 1/2 | 452 mm | 28 mm | 41 mm | 23 mm | 18 mm | 36 | 387 mm | 1282 g |
| 50204020 | 20 | 721 Quick | 40-200 N·m | 30-145 ft·lb | 40 N·m | 200 N·m | 5 N·m | 5 ft·lb | 1/2 | 483 mm | 28 mm | 41 mm | 23 mm | 18 mm | 36 | 418 mm | 1349 g |
| 50204030 | 30 | 721 Quick | 60-300 N·m | 50-220 ft·lb | 60 N·m | 300 N·m | 10 N·m | 10 ft·lb | 1/2 | 553 mm | 28 mm | 44 mm | 23 mm | 27,5 mm | 36 | 486 mm | 1646 g |
Technologies and features
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
Properties
- clicking type with dual stop signal
- no reset to “0” required
- the measuring element is only under load when a force is applied.
- Quick adjustment thanks to easy-to-operate locking lever in handle
- non-slip adjuster with thumb recess for quick torque adjustment
- dual scale N·m/ft·lb
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- for controlled clockwise tightening
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
