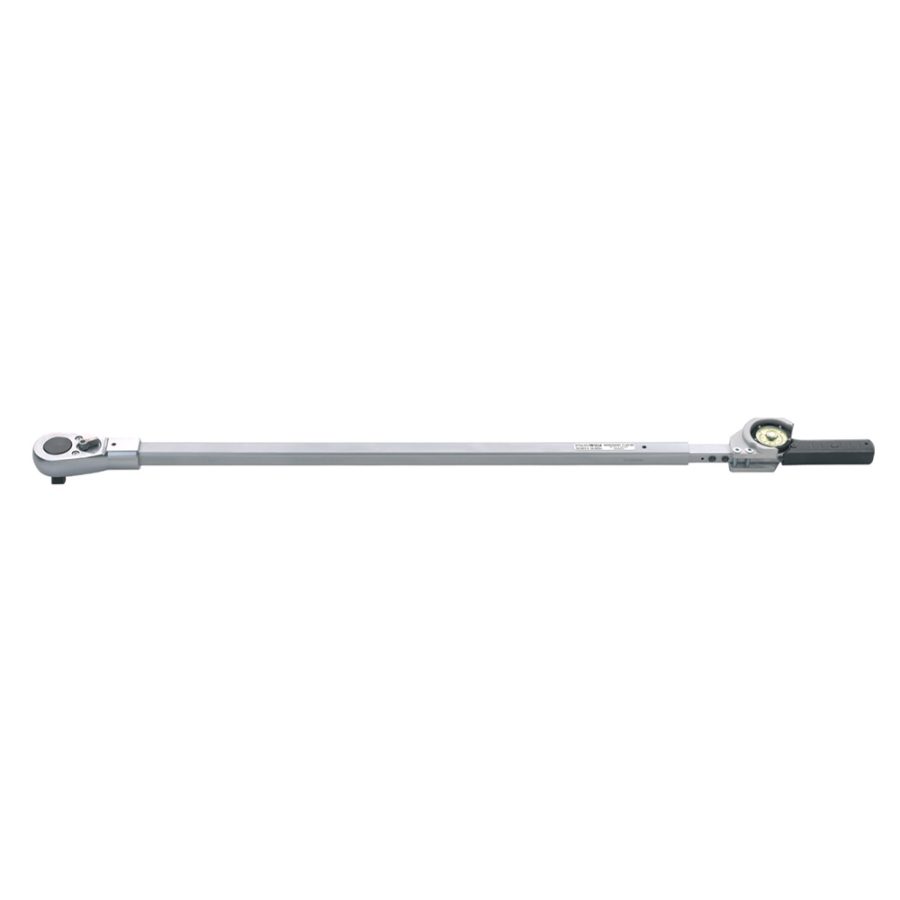

Torque wrench MANOSKOP® with dial gauge and fixed ratchet 71aR/80
- display
- drag indicator dial gauge
- with permanently installed ratchet
- 36 teeth
- for controlled clockwise tightening
- dual scale N·m/ft·lb
- scale made of special luminescent, bright yellow foil for clear readability of the display even in poor visibility conditions
- dial gauge secured with an additional protective ring
- handle with integrated force balancing mechanism
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- delivered in a textile bag
- calibration certificate in accordance with DIN EN ISO 6789‑2:2017
- accuracy ± 4%
Description
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | Scale division N·m | Scale division ft-lb | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | LF | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50450080 | 71aR/80 | 160-800 N·m | 100-600 ft·lb | 10 N·m | 10 ft·lb | 3/4 | 1152 mm | 70 mm | 30 mm | 1060 mm | 4900 g |
Technologies and features
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
