Torque tool set with SENSOTORK® 701/32/1
Key features of torque wrench No. 701/2
- idicating type
- with permanently installed fine-tooth ratchet
- 80 teeth allow for a working angle of just 4.5° – enabling you to work efficiently, even in the tightest spaces
- with QuickRelease safety lock
- very slim and compact design for small torques from 1-20 N·m
- measurement independent of the point of force application
- units of measurement: N·m, cN·m, ft·lb, in·lb
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- results can be documented (with SensoMaster), evaluation of bolted joint by coloured LEDs, buzzer, and vibration
- supplied with 3.6 V lithium-metal battery, type 14500, packaged according to UN3091, Class 9
- adjustable joint parameters
- with 2-component handle
- in a sturdy plastic box
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
| Product no. | Model | Contents | Measuring range N·m | Measuring range cN·m | Scale division ft-lb | Scale division in-lb | Length mm (L) | Width mm (b) | Height mm (h) | Battery type | Number of tools | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96090005 | 701/32/1 | torque wrench SENSOTORK® 701 sockets 1/4″ hex, 4; 5; 5;5; 6; 7; 8; 9; 10; 11; 12; 13 mm extension 1/4″, L. 54 mm bit holder 1/4″ square to 1/4″ hex bits hex 4, 5, 6, 8 mm bits PHILLIPS® PH 1, 2, 3 bits PHILLIPS® PZ 1, 2, 3 bits TX T10, T15, T20, T25, T27, T30, T40 USB connection cable 2.0 | 1-20 N·m | 100-2000 cN·m | 0,7-15 ft·lb | 9-180 in·lb | 320 mm | 135 mm | 55 mm | Lithium-Batterie 3,6 V, Typ 14500 | 32 | 923 g |
Technologies and features
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers: The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.

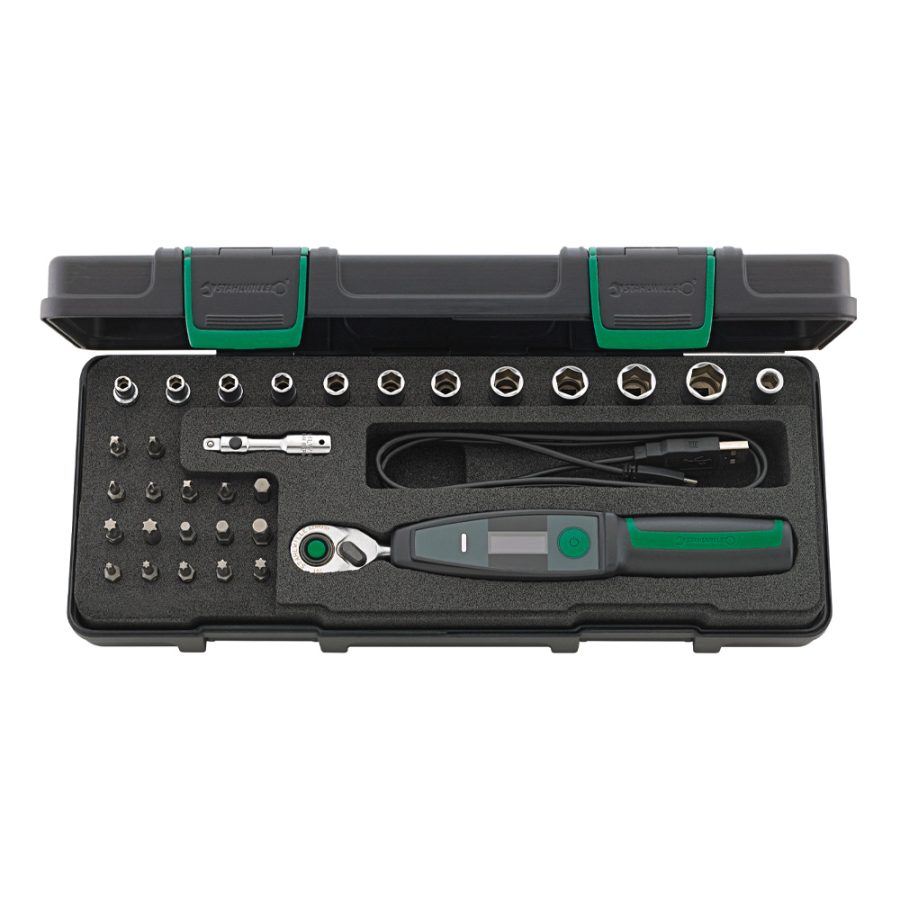

Contains 32-pieces:
1 torque wrench 1/4″ No. 701/2: measurement range: 1-20 N·m
11 sockets with hex 1/4″ No. 40: 4; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13 mm
1 QuickRelease extension 1/4″ No. 405QR: L. 54 mm
1 bit holder 1/4″ No. 412
3 bits PHILLIPS® 1/4″ No. PH 1221-1223: PH1; PH2; PH3
3 bits POZIDRIV® 1/4″ No. PZ 1221-1223: PZ1; PZ2; PZ3
4 bits hex 1/4″ No. 1301-1304: 4; 5; 6; 8 mm
7 bits TORX® 1/4″ No. 1414-1420: T10; T15; T20; T25; T27; T30; T40
1 USB cable No. 7754
