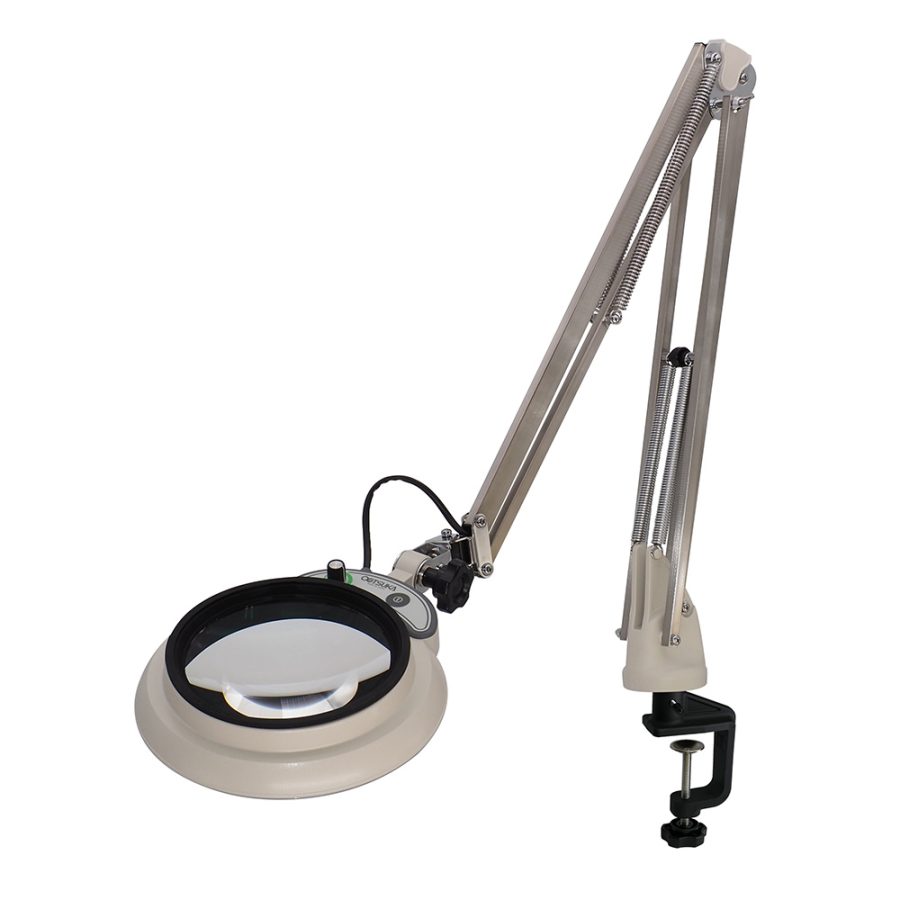

Otsuka Illuminated LED Magnifier Magnalight Series – MGL-F – Universal Clamp with Dimming Function
Product Features
- The MAGNALIGHT series is the successor to the popularly discontinued “LSK Wide” series, but with a newly designed lighting head and shared use of parts, the price has been successfully reduced.
- The newly designed “MAGNA WIDE Lens System” has a large-diameter lens of 150 mm in diameter, providing a 25% larger field of view compared to the standard lens (130 mm in diameter).
- The AR (Anti-Reflection) coatings on the lens is standard.the annoying flicker of reflected ambient light on the lens surface, reducing eye fatigue and improving inspection accuracy.
- The lighting is provided by high-performance LEDs with high color rendering properties, which reduces discomfort during visual inspection.
- The illumination is equipped with high-performance LEDs with high color rendering, which reduces discomfort during visual inspection. These are sampled values and are not guaranteed.
- Free-arm type product to be clamped to a desk.
Technical Specification
Technical Specification
Product Name : LED Illuminated magnifier
Model Name : MGL-F(Free Arm)
LENS | |
Mangnification | 2XAR、3XAR、4XAR |
LENS method | Magna Wide Lens system |
Lighting | |
Light source | High color rending LED (Ra≧95) with diffusion protective color |
Rated input voltage | AC100V~240V 50/60Hz to 240V can be used by changing AC cord only. |
Rated power consumption | 14W |
Dimming function | 100%〜0% |
Body | |
weight(Kg) | 2.4(excluding lens weight) |
height(mm) | 1000 |
Head Dimentions(mm) | Φ226 |
Base Dimentionsmm) | 188×320 |
Clamping width(mm) | 10-60 |
AC Adapter Dimensions(mm) | 87×45×34H(excluding wire) |
Operating temperature range | 5℃ ~ 35℃ |
Dustproof and waterproof protection class | IP20(for indoor use only) |
Magnifier Lens Magnification | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
AR (anti-reflection) Coated Lens | Available / 2x, 3x, 4x, 6x, 8x, 10x |
Lighting | |
Light source | High Color Quality White LED(CRI≧90) with Protective cover for diffusion |
Power consumption | 10W |
Dimming Function | Available / 100-10% |
Body | |
Weight (Kg) | 1.9kg (Without lens and AC adapter/body weight) |
Brace / Bar (diameter / mm) | Φ16/Φ13 |
AC Adapter | Dimension : 96×44×H29[mm] (Not include wires) |
Weight : 0.3kg(Include wires) | |
Operating temperature range | 5℃〜35℃ |
Dustproof and waterproof protection grade | IP20 (indoor use only) |
