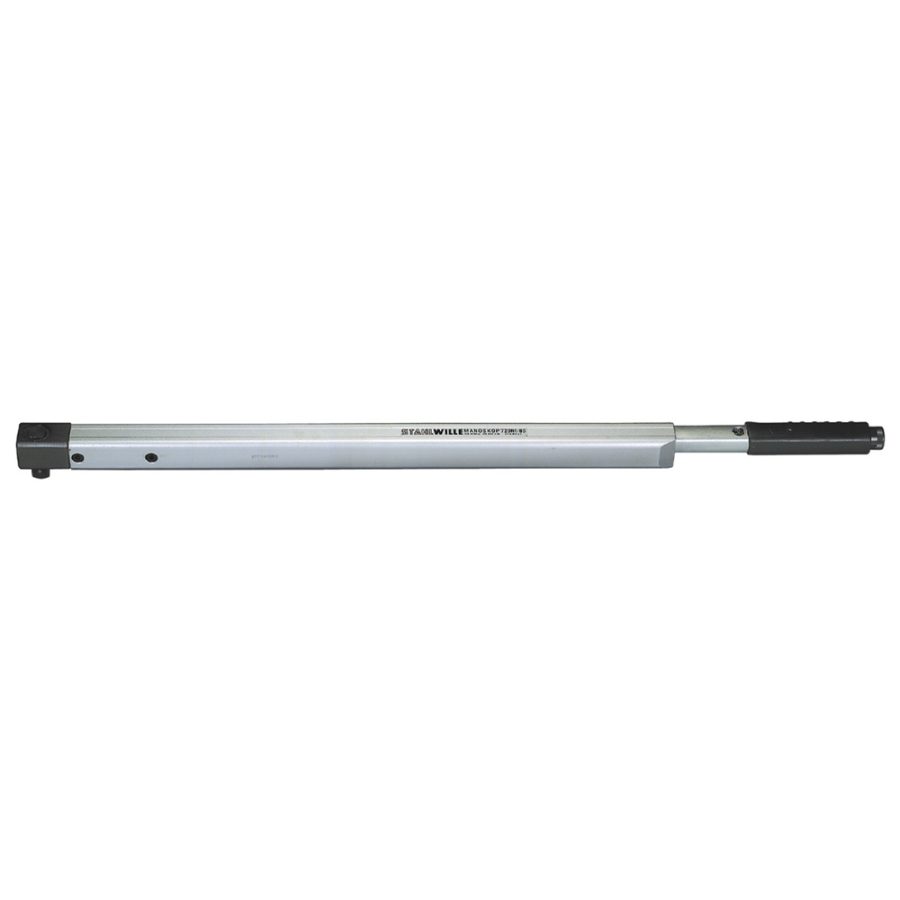

Torque wrench MANOSKOP® with fixed square drive 720NF/80
- clicking type with dual stop signal
- 3/4″ external square drive
- Quick adjustment thanks to easy-to-operate locking lever in handle
- dual scale N·m/ft·lb
- anti-clockwise tightening through a reversible square
- all sensitive parts are protected by the robust tubular steel housing in alu-U-profile
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- delivered in a textile bag
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
Description
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | LF | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50190081 | 720NF/80 | 160-800 N·m | 120-600 ft·lb | 160 N·m | 800 N·m | 20 N·m | 20 ft·lb | 3/4 | 1034 mm | 45 mm | 42 mm | 938 mm | 5650 g |
Technologies and features
DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.
Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to ‘0’ after use.
