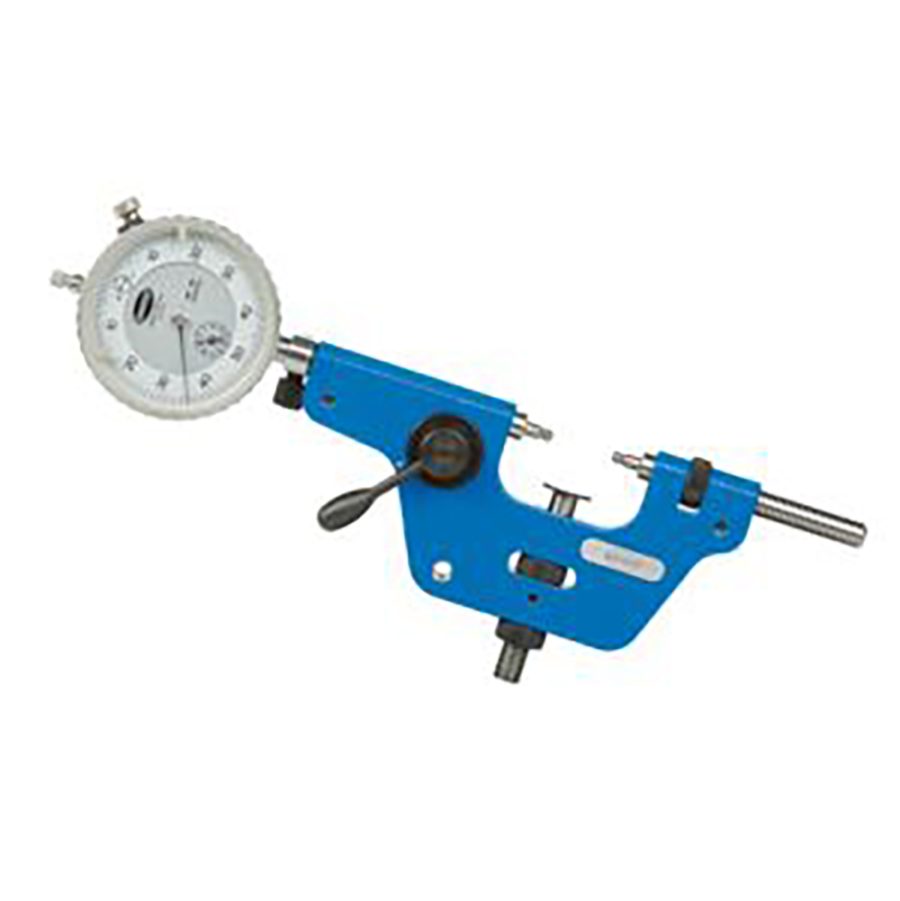

External Gear Gauges EG

Flexible indicating 2-point measuring instruments for external gear gauging
External Gear Gauges:

Range over balls Ma = 0 – 140 mm
Available in four measuring ranges: Ma = 0-30, 0-70, 30-70 und 70-140 mm
Ball anvils are interchangeable
Optional: Checking stand

Balls are made of carbide. Many ball diameters are available on stock as well as roller anvils. For zero setting, please use measured sample components or setting masters. Mechanical and digital indicators storing the MIN-value can be used. Special designs on request.
