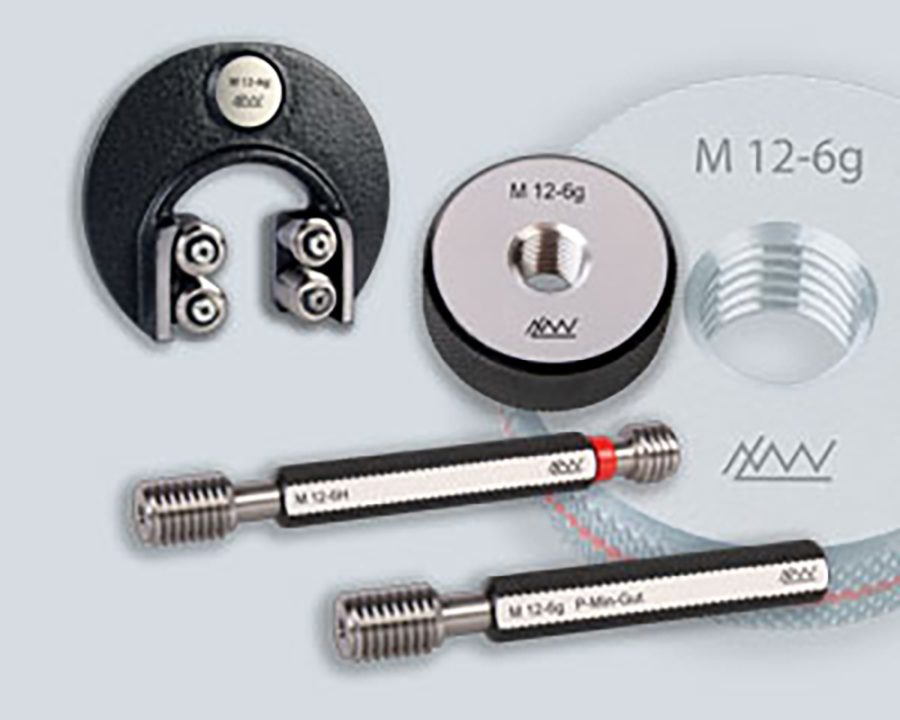

LMW Lehren ISO-metric screw threads – coarse threads DIN 13 / DIN 965

Limit thread plug gauge

• available nominal diameters: 1 – 40mm
• for special designs make inquiry; this concerns: left-hand thread, workpiece tolerance class / workpiece tolerance, gauge dimensions, dimensions, materials / coatings

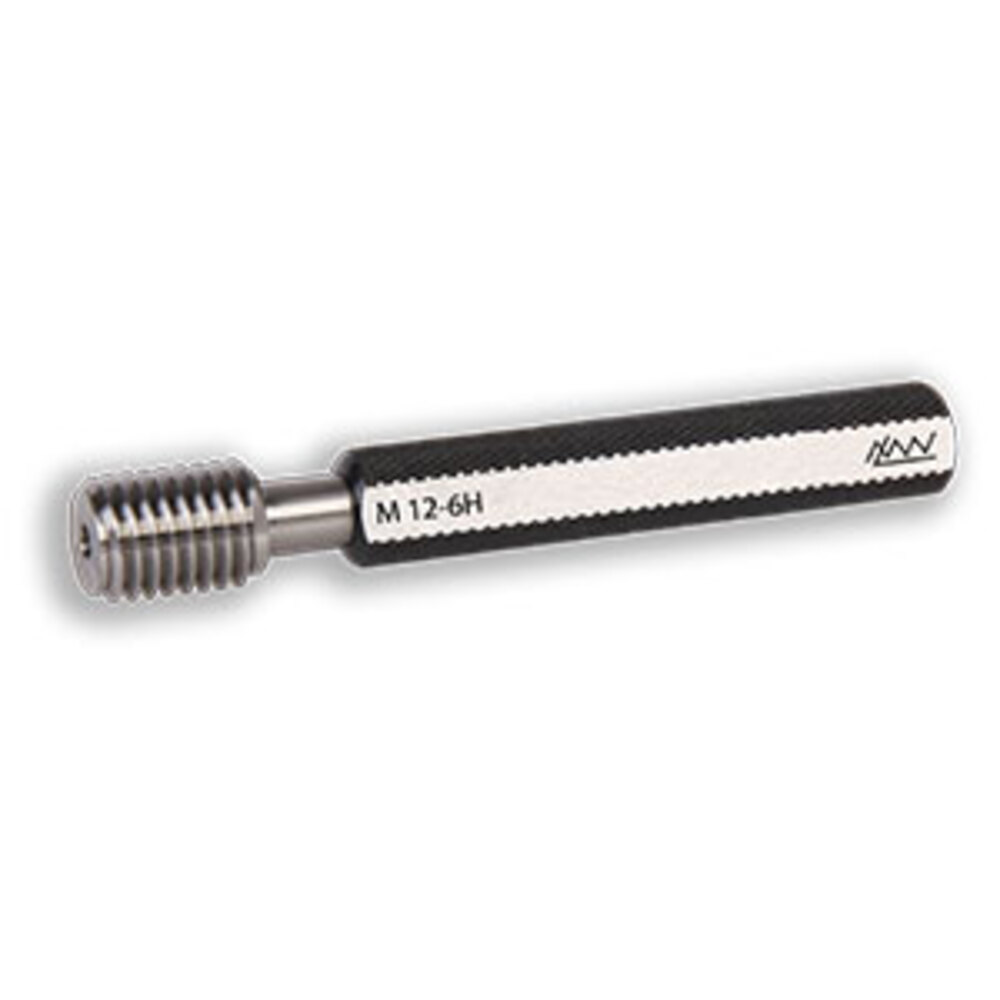

Go thread plug gauge

• available nominal diameters: 1 – 250mm
• for special designs make inquiry; this concerns: left-hand thread, workpiece tolerance class / workpiece tolerance, gauge dimensions, dimensions, materials / coatings

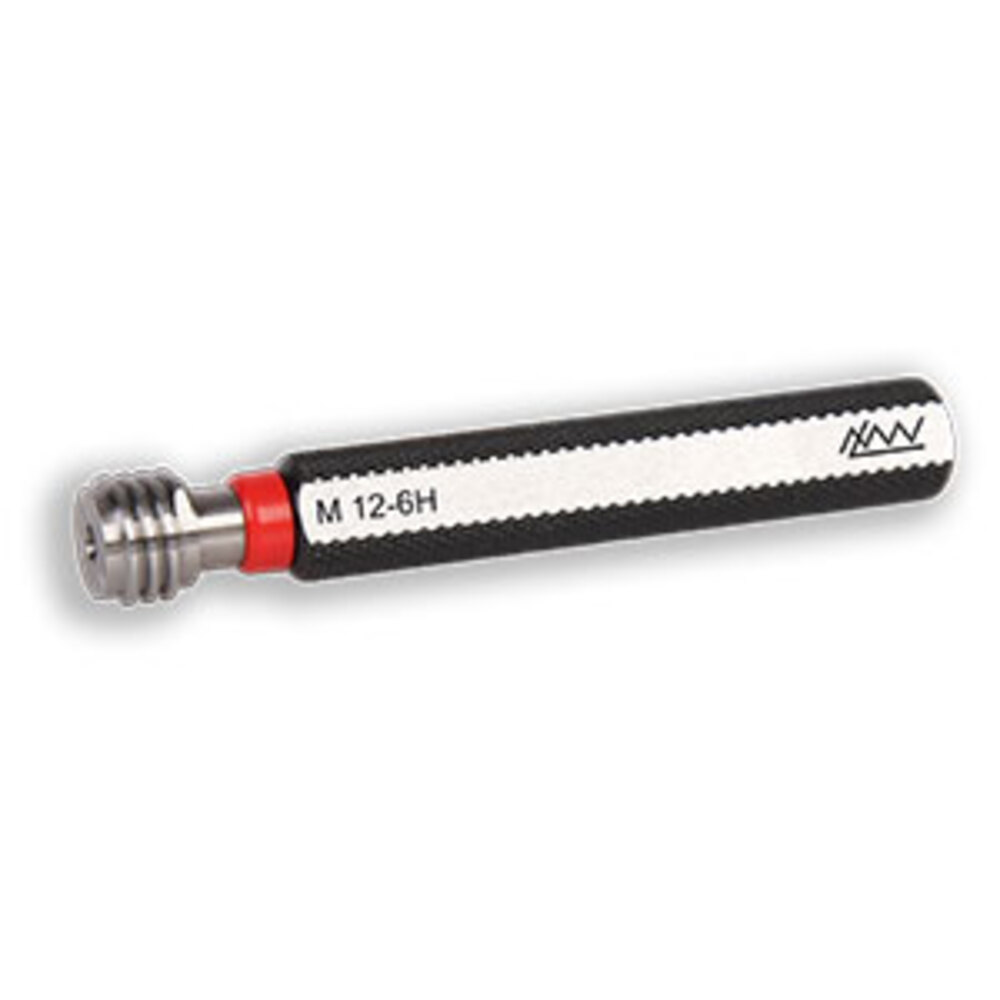

No go thread plug gauge

• available nominal diameters: 1 – 250mm
• for special designs make inquiry; this concerns: left-hand thread, workpiece tolerance class / workpiece tolerance, gauge dimensions, dimensions, materials / coatings

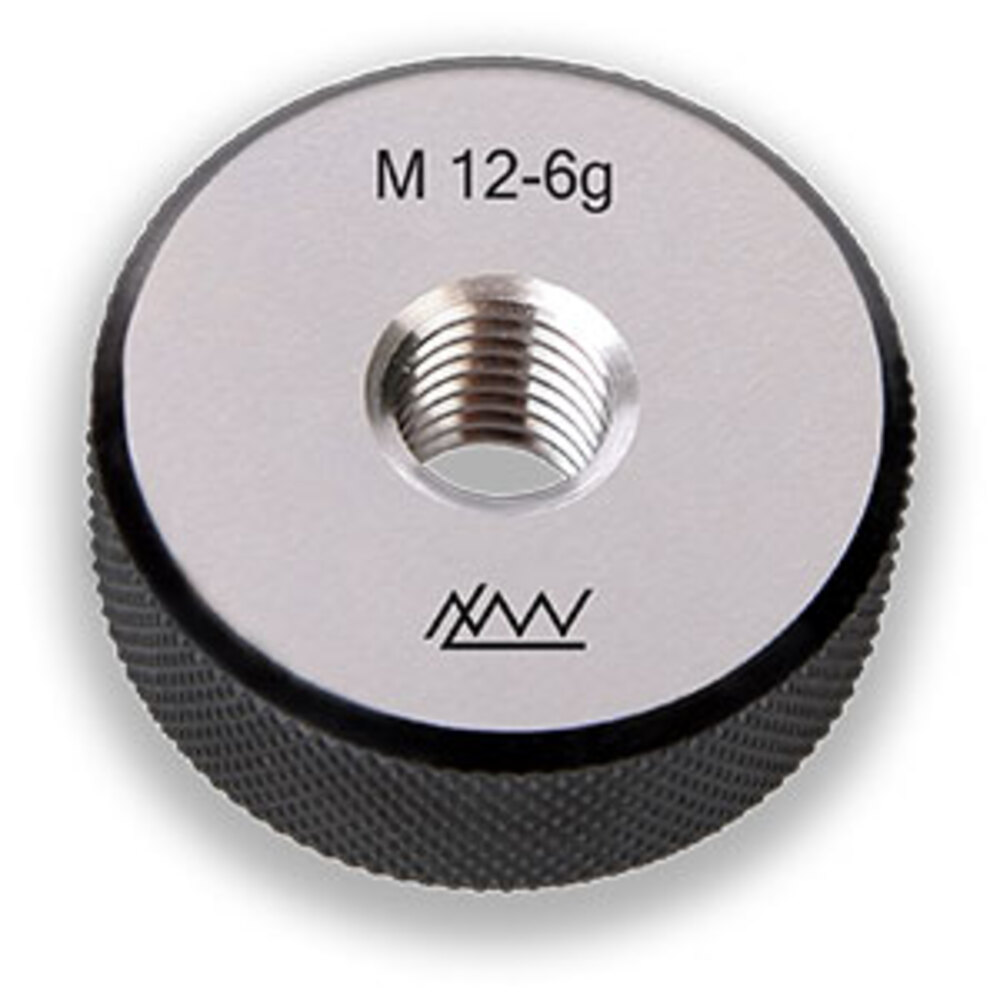

Go thread ring gauge

• available nominal diameters: 1 – 250mm
• for special designs make inquiry; this concerns: left-hand thread, workpiece tolerance class / workpiece tolerance, gauge dimensions, dimensions, materials / coatings

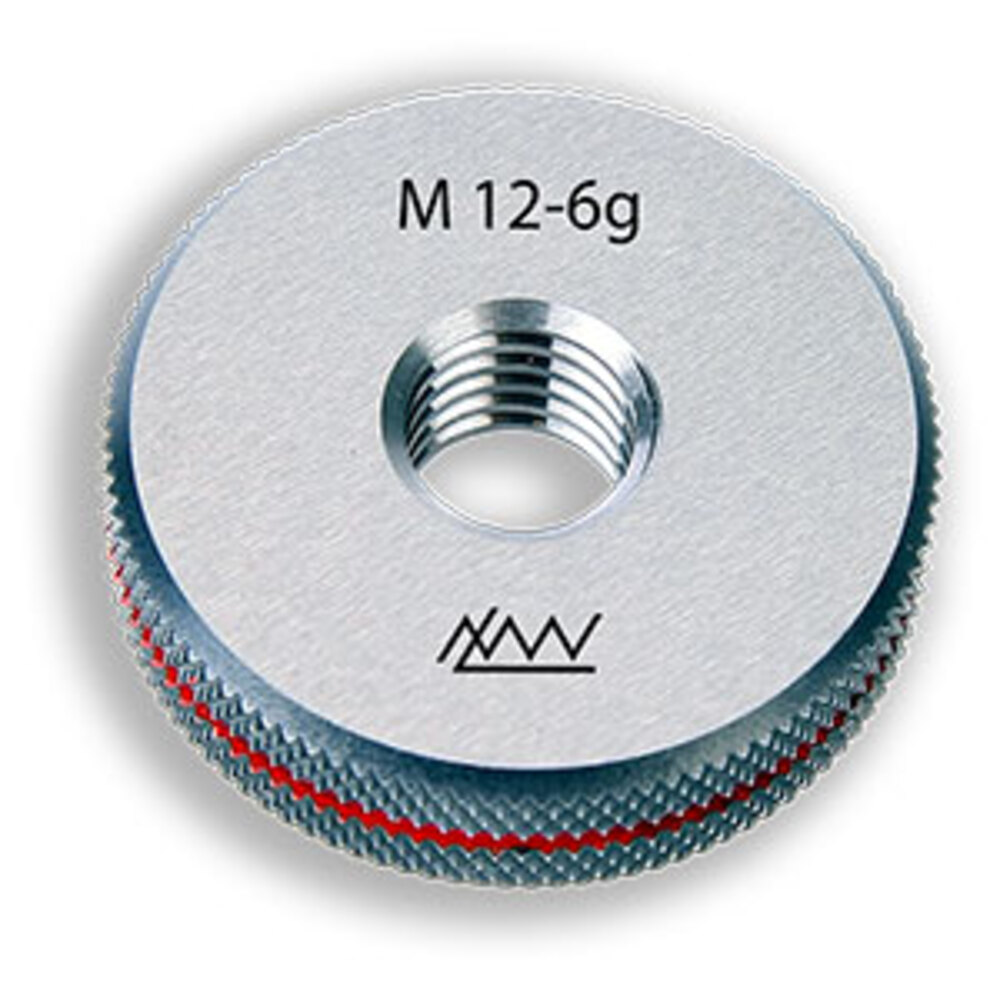

No go thread ring gauge

• available nominal diameters: 1 – 250mm
• for special designs make inquiry; this concerns: left-hand thread, workpiece tolerance class / workpiece tolerance, gauge dimensions, dimensions, materials / coatings

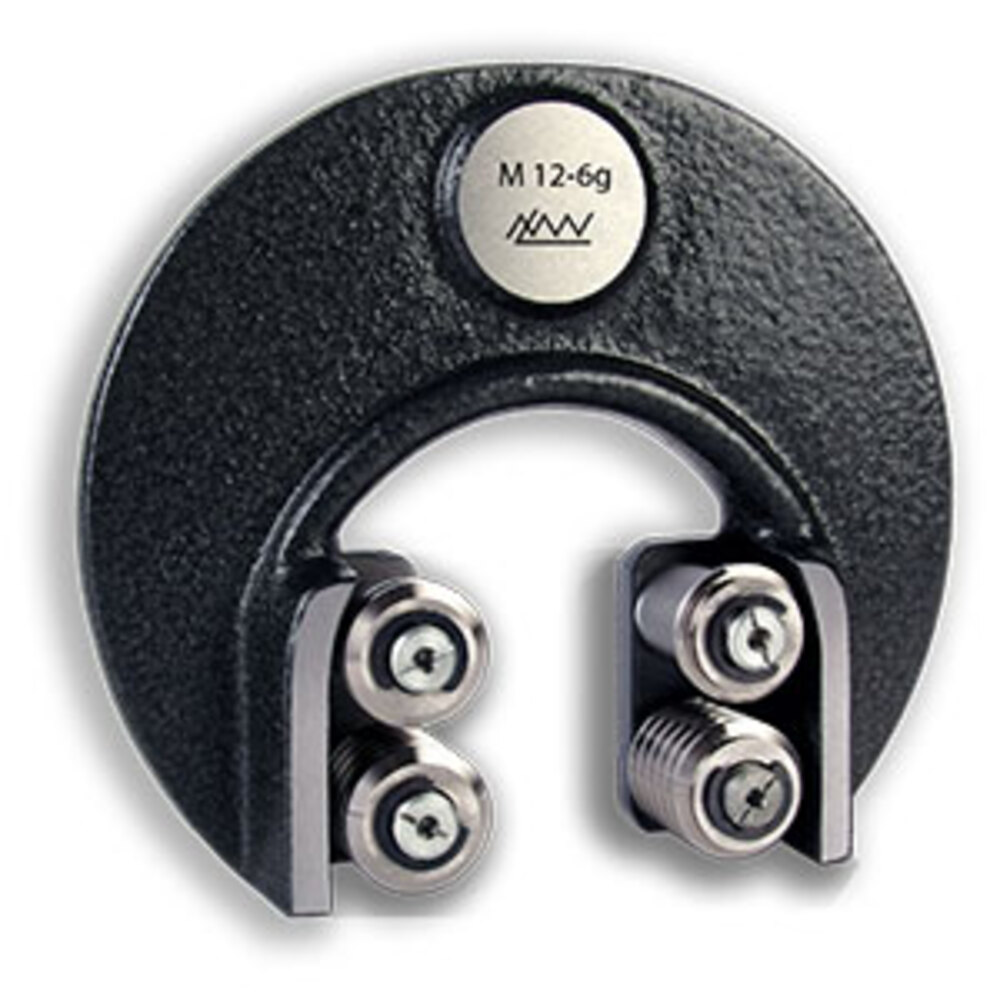

Limit thread calliper gauge

• available nominal diameters: 3 – 200mm

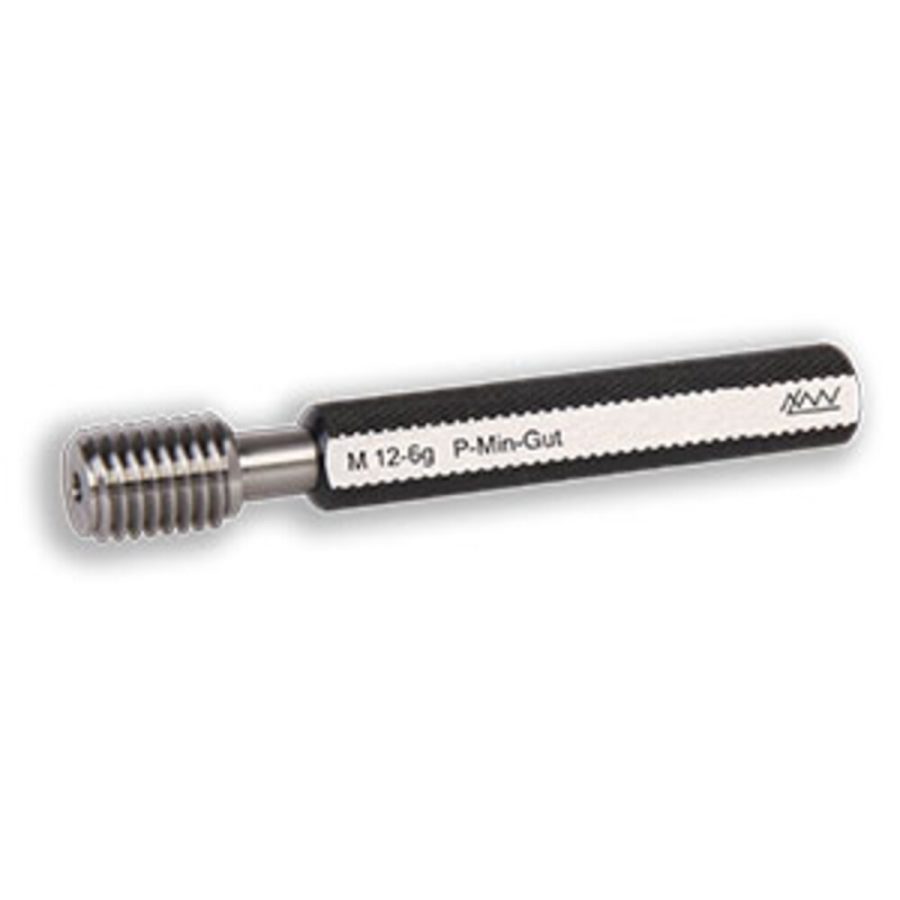

Setting plug gauge for limit thread calliper gauge

Further gauges

• go and no go thread check plug and wear check plug for go or no go thread ring gauges
• threda setting plug gauges and thread setting ring gauges
• thread limit plug gauges, thread go plug gauges and thread no go plug gauges for core diameter
• go and no go ring gauges for major diameter
• limit gap gauges, go gap gauges and no go gap gauges for major diameter
