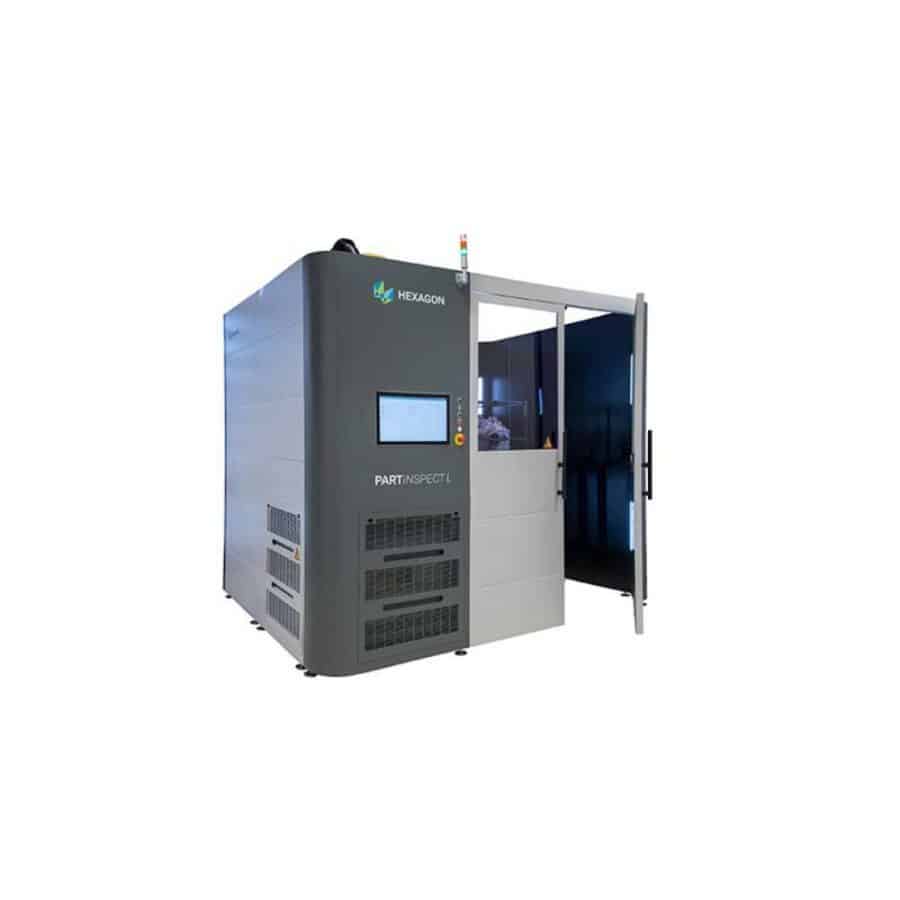

PartInspect L

Turnkey automated inspection powered by structured light scanner technology

The first steps into the world of smart manufacturing are now simpler than ever with the PartInspect L, a modular robotic inspection cell concept designed to make high-speed, high-accuracy measurement on the shop floor easier than ever.

Based on the scanning technology of the StereoScan neo or the PrimeScan, the PartInspect L merges a powerful robot arm with premium structured-light scanning technology to deliver an unmatched level of quality control reporting directly on the shop floor, with minimal operator training required.


With its built-in touchscreen kiosk interface, PartInspect L is straightforward for sharp-end operators, who are able to quickly select from and launch any preinstalled robot programs and subsequently view inspection reports immediately following the measurement process. And with in-process planning functionality as standard, downtime is massively reduced, allowing for near constant active measurement time if required.

Whether installed at-line, near-line or offline, the PartInspect L is a perfect solution for automated part measurement – simply plan, measure, report.


DPA Online

All PartInspect L configurations can be easily augmented with a photogrammetry referencing system thanks to the specially designed DPA Online system. A hardware and software solution, DPA Online sees photogrammetric analysis fully integrated within the measurement program workflow, with customised robot programs provided for each configuration. The addition of DPA Online strengthens the measurement geometry of the PartInspect L system and guarantees accuracy to within 50 microns throughout the entire measurement volume. Available at time of purchase or as a future upgrade, the DPA Online system involves mounting a high-resolution camera unit alongside the PartInspect L scanner and is aimed particularly at users with challenging part applications, such as the measurement of flat, thin or very large objects.
