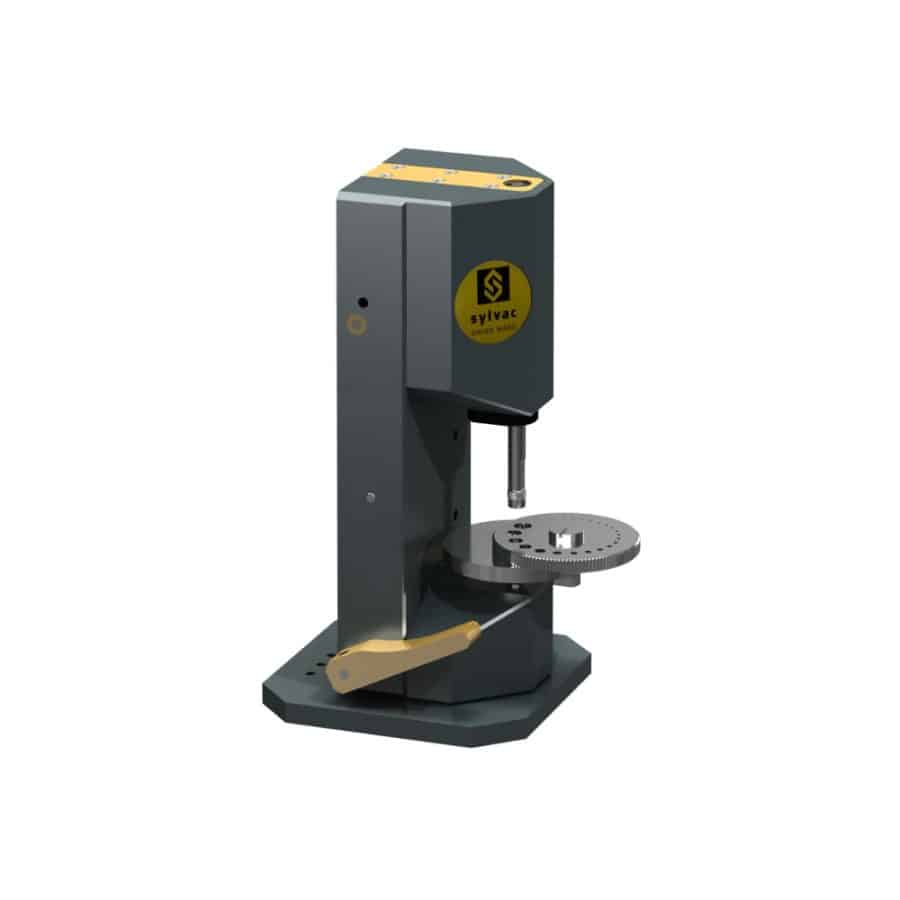

Sylvac Measuring Bench Table – PS15BV

  • Small vertical bench table designed to easily and quickly check small parts up to 20 mm
  • Measuring spindle guided by linear ball bearing
  • The measured value will be displayed either by a Sylvac digital dial gauge range 12.5mm, up to 0.0001mm resolution or by a Sylvac measuring probe P10 (P10L) linked to a digital display unit. Using a pair display unit / measuring probe an overall accuracy of 0.6 μm and a repeatability of 0.2 μm can be reached.
  • This bench table can be equipped with different kind of tables XYZ as well as with several types of anvils of any shapes
