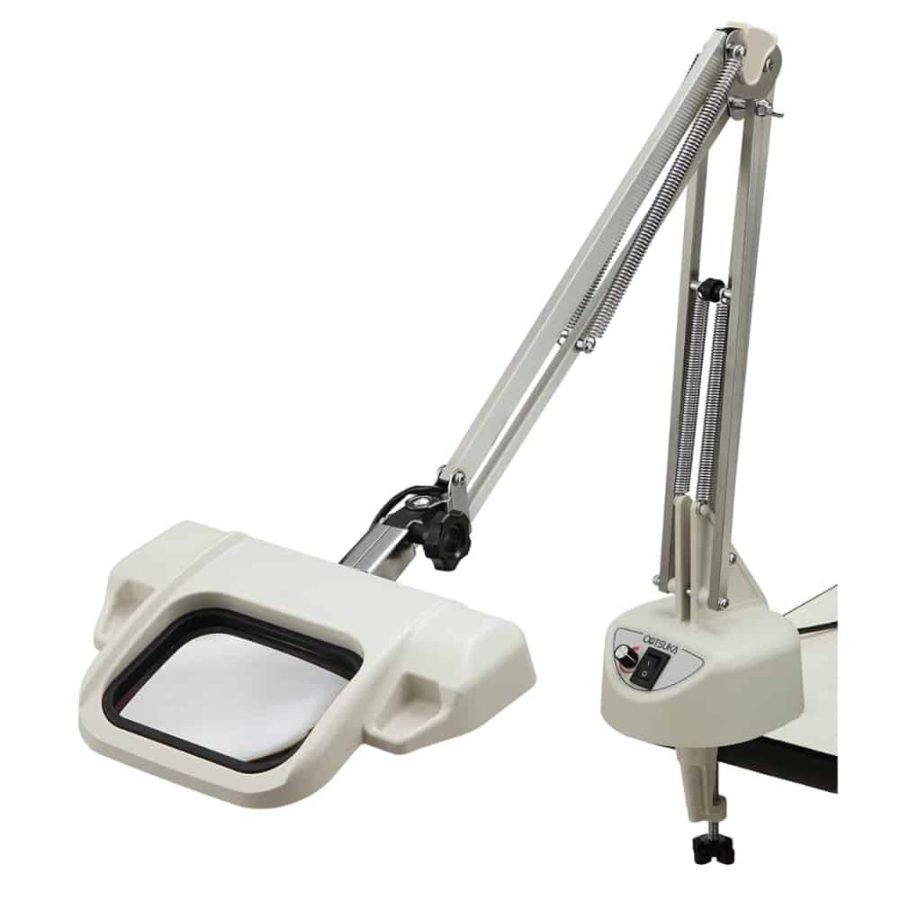

Otsuka Illuminated LED Magnifier – O-LIGHT III L-F – Universal Clamp Square Lens
Product Name
LED Illuminated Magnifier
Model
O-LIGHT IIIL-F (Free arm-type illuminated magnifier)
Description
Product features

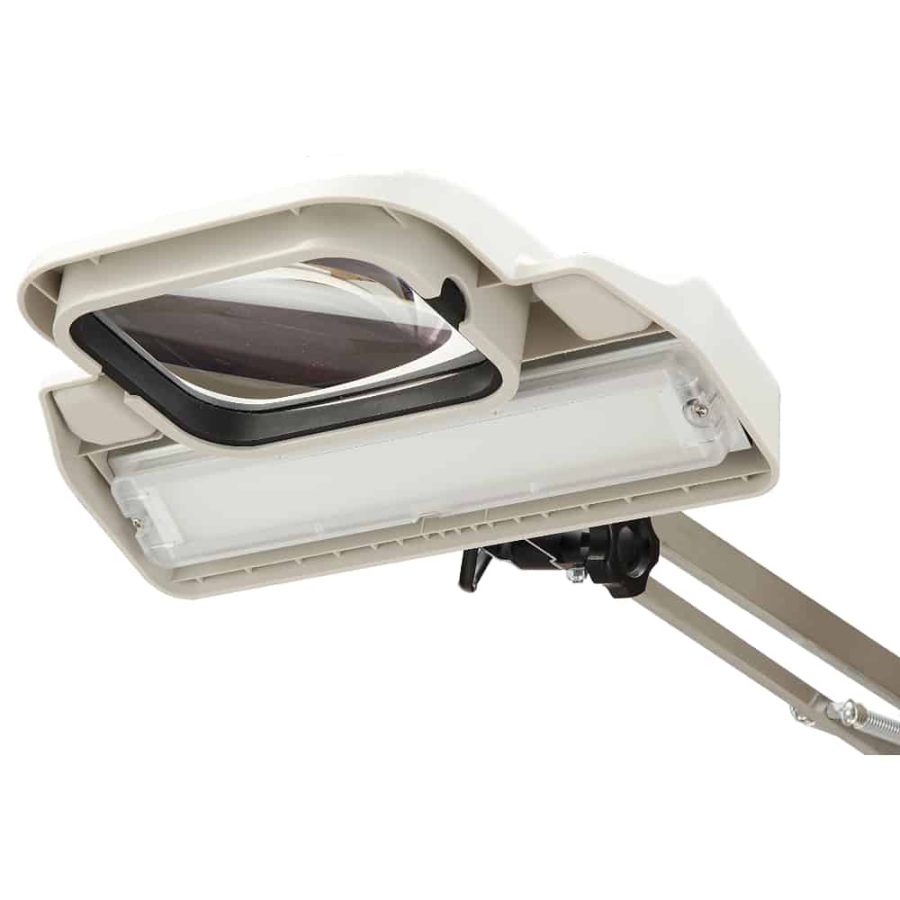

The O-LIGHT III L-F features a diagonally mounted white LED lighting panel to emit light at an angle in relation to the lens center. This means the product is designed with an emphasis on rendering unevenness on work-pieces visible. The model excels at detecting surface scratches and dents, etc. on metal and resin. The rectangular lens has reduced peripheral distortion to handle extended work periods. The product can reduce strain and fatigue from work through the use of optional AR-Coated Lenses which suppress refraction, increasing the volume of light that passes through.
Technical Specification
Technical Specification
Lens spec | |
---|---|
Magnification | 2x or 3.5x |
Lens Dimension (mm) | 144×108 |
Effective Lens Dimensions (mm) | 139×103 |
Lens Material | Optical glass |
working distance (mm) | 2x-160,3.5x-120 |
Lens Weight (g) | 2x-560,3.5x-730 |
Lens Types | Interchangeable Lens “Recta-System” Lens System |
AR Coating options | Available / 2x or 3.5x |
Lighting | |
Light Source | LED lighting panel |
Power Consumption | 9W |
Dimmer Function | Available / adjustment range 100~50% |
Body | |
Product weight | O-LIGHT III-L 2x (approx 3.0Kg) O-LIGHT III-L 3.5x (approx 3.3Kg) |
Arm length (mm) | 1000 |
Head Dimensions (mm) | 293×205 |
Clampable Widths (mm) | 15-60 |
Usable Temperature Range | 5℃~40℃ |
Dust and Water Protection Rating | IP20 (Indoor use only) |
